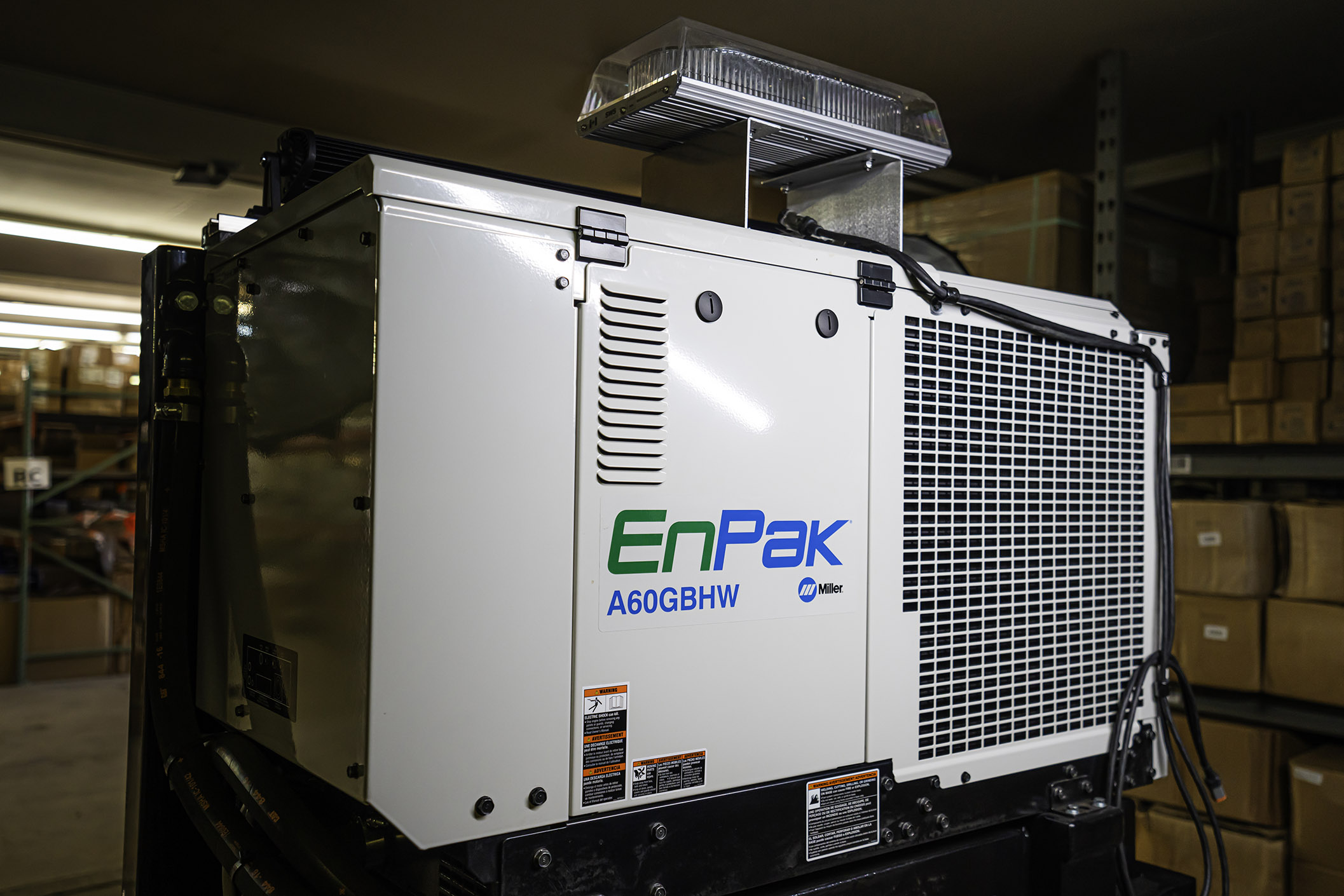

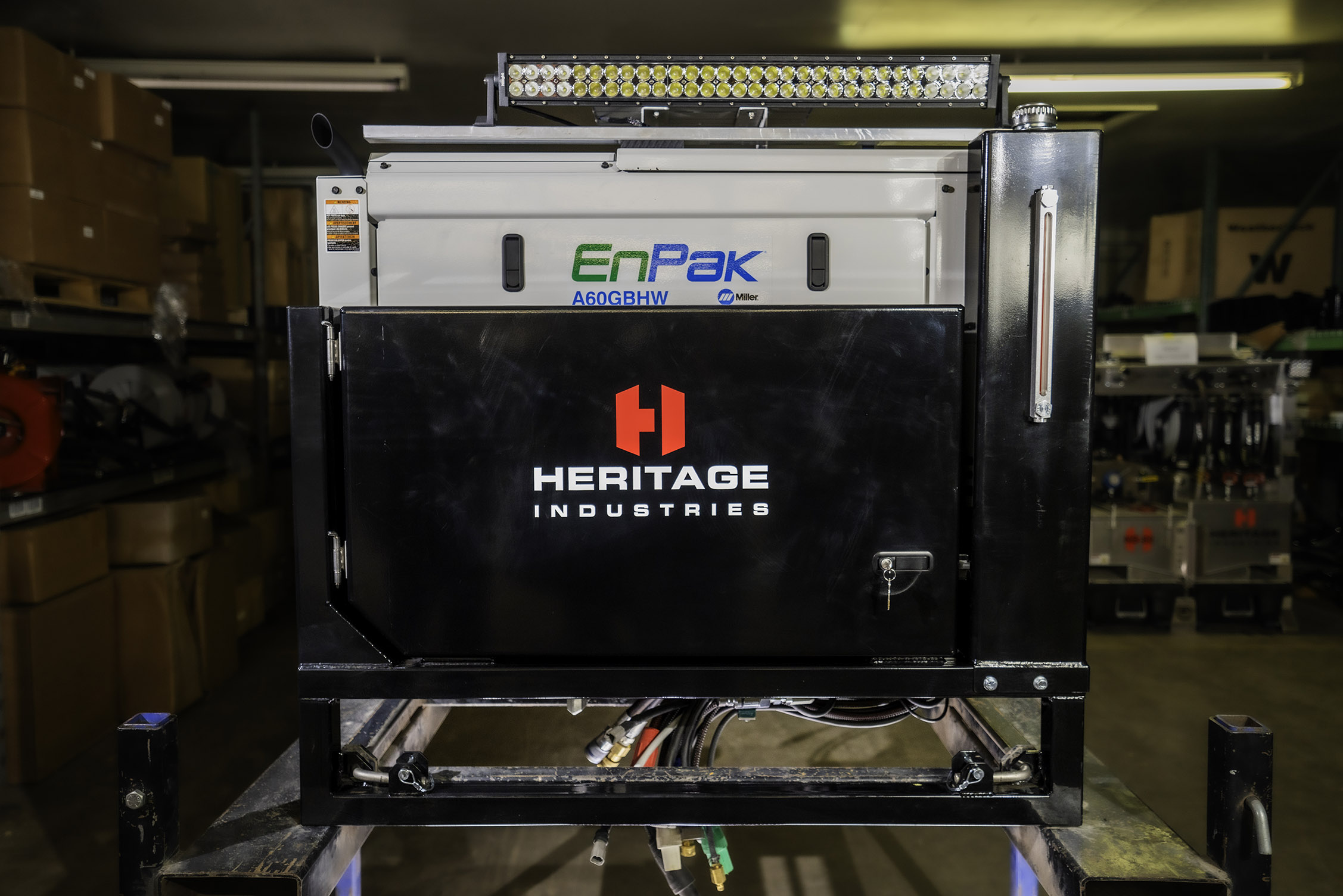

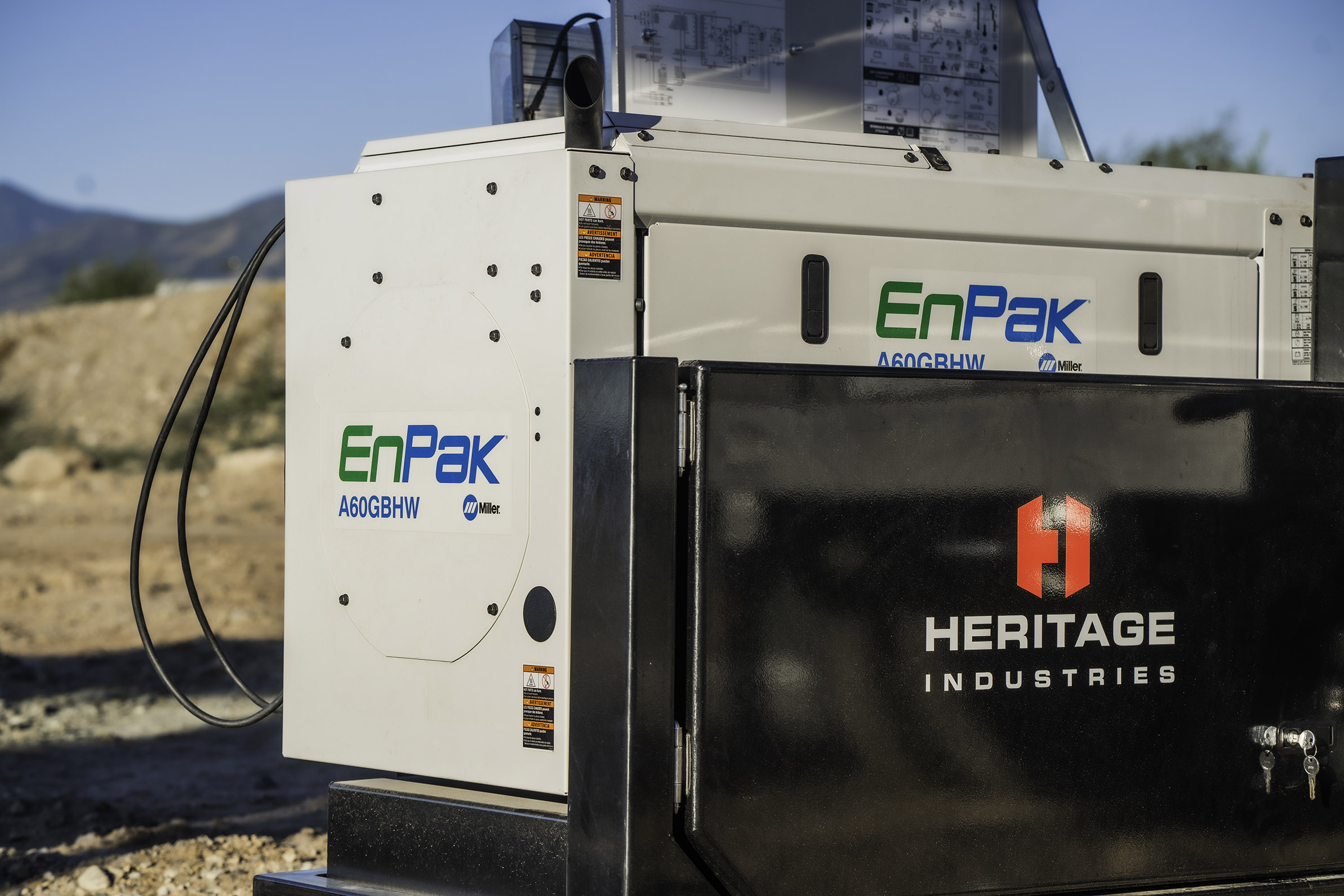

EnPak Quick Dock System by Heritage Industries

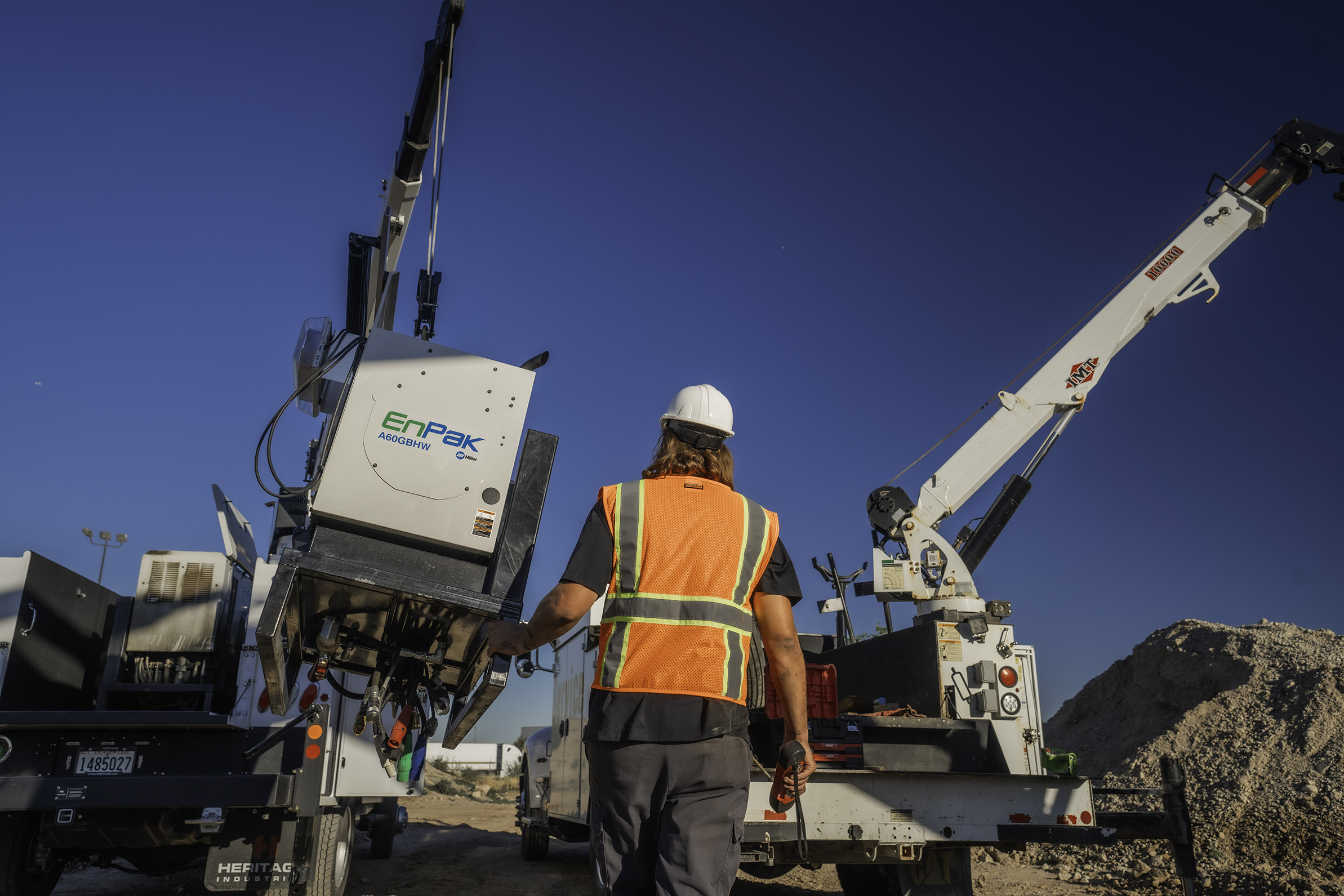

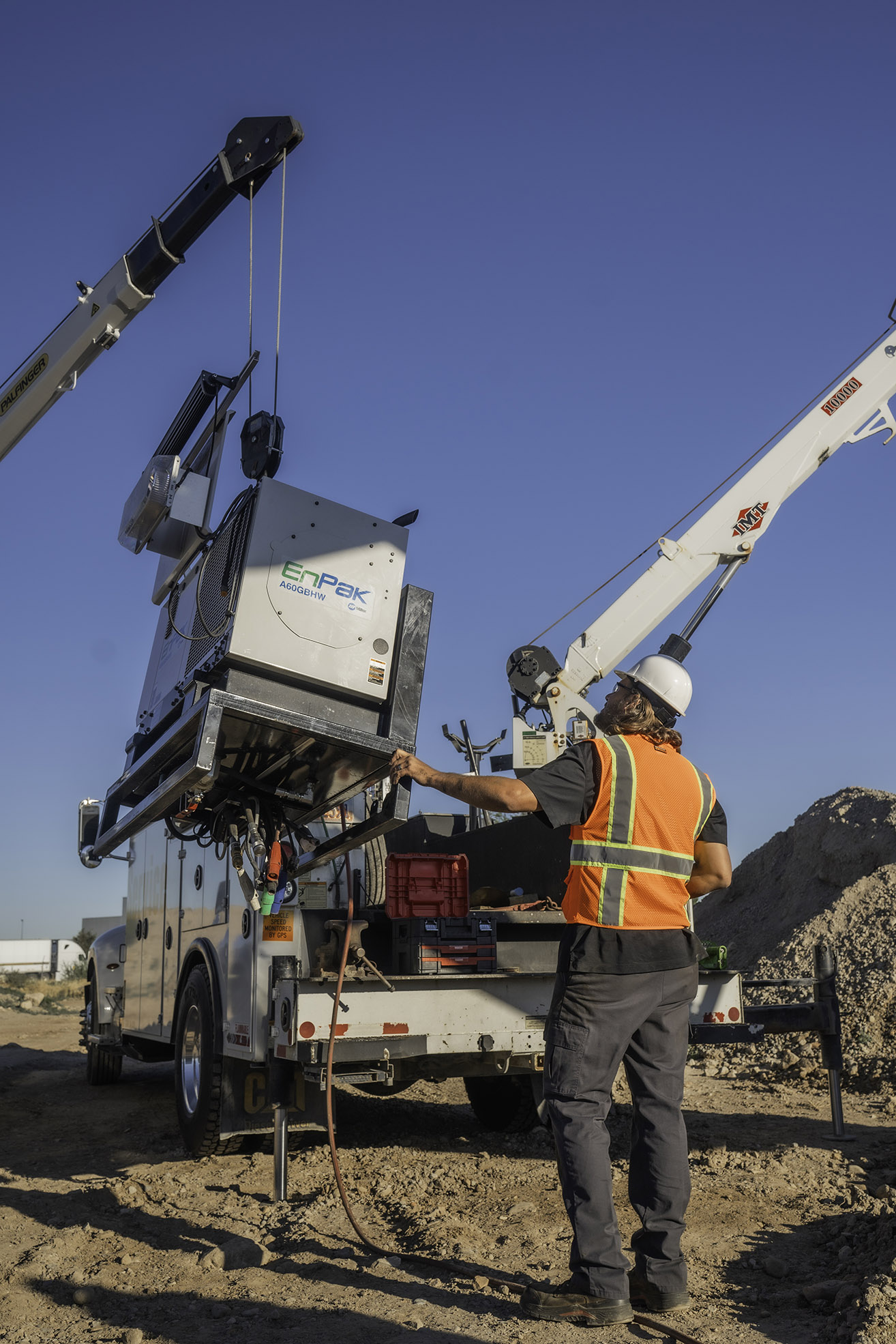

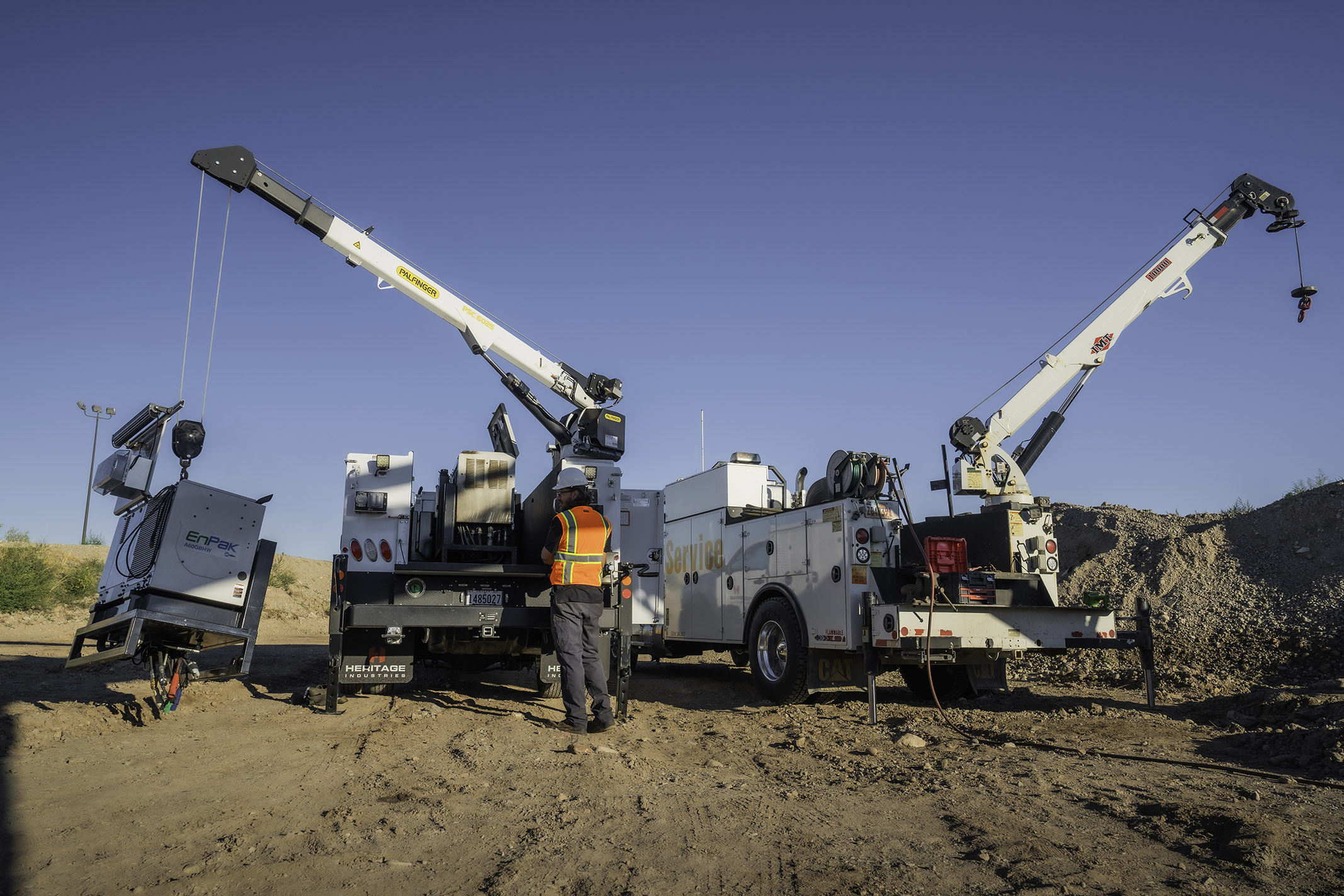

Save money and time with the EnPak Quick Dock by Heritage Industries. With the Quick Dock you can un-dock and dock a new EnPak power system in 1 hour or less.

EnPack Quick Dock System Specs:

  • HD integral mounting / tank frame
  • Lower lock-pin mounting base

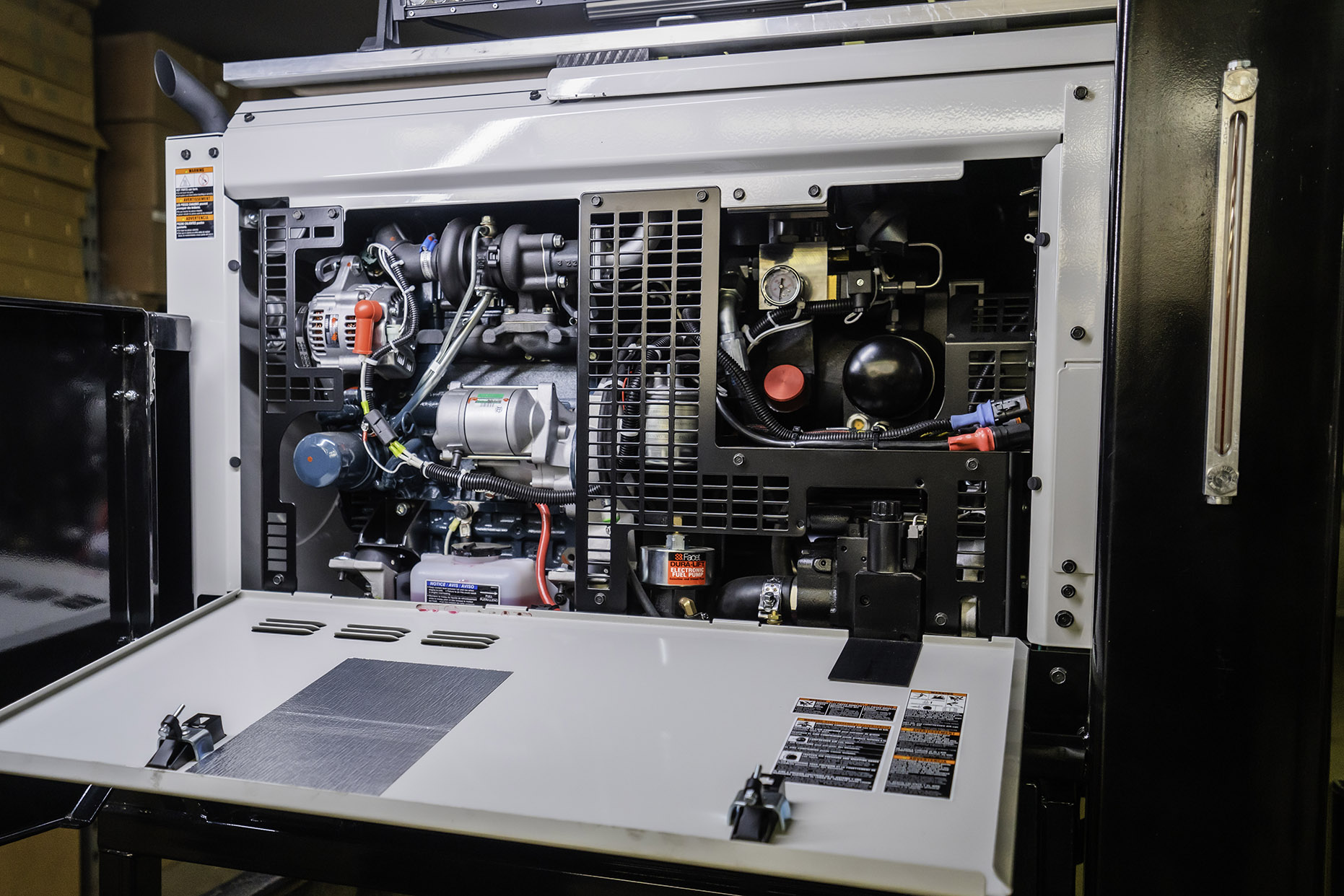

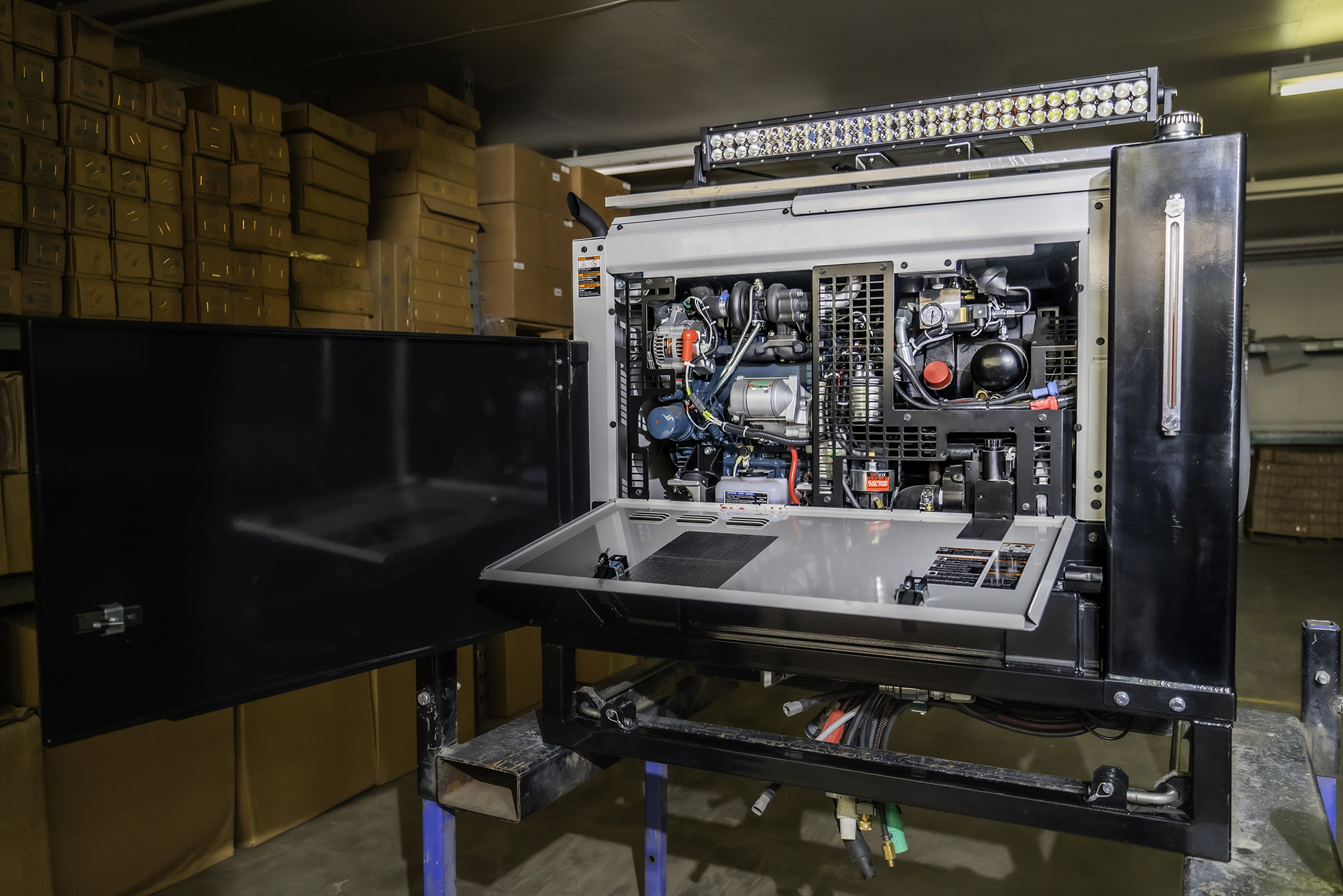

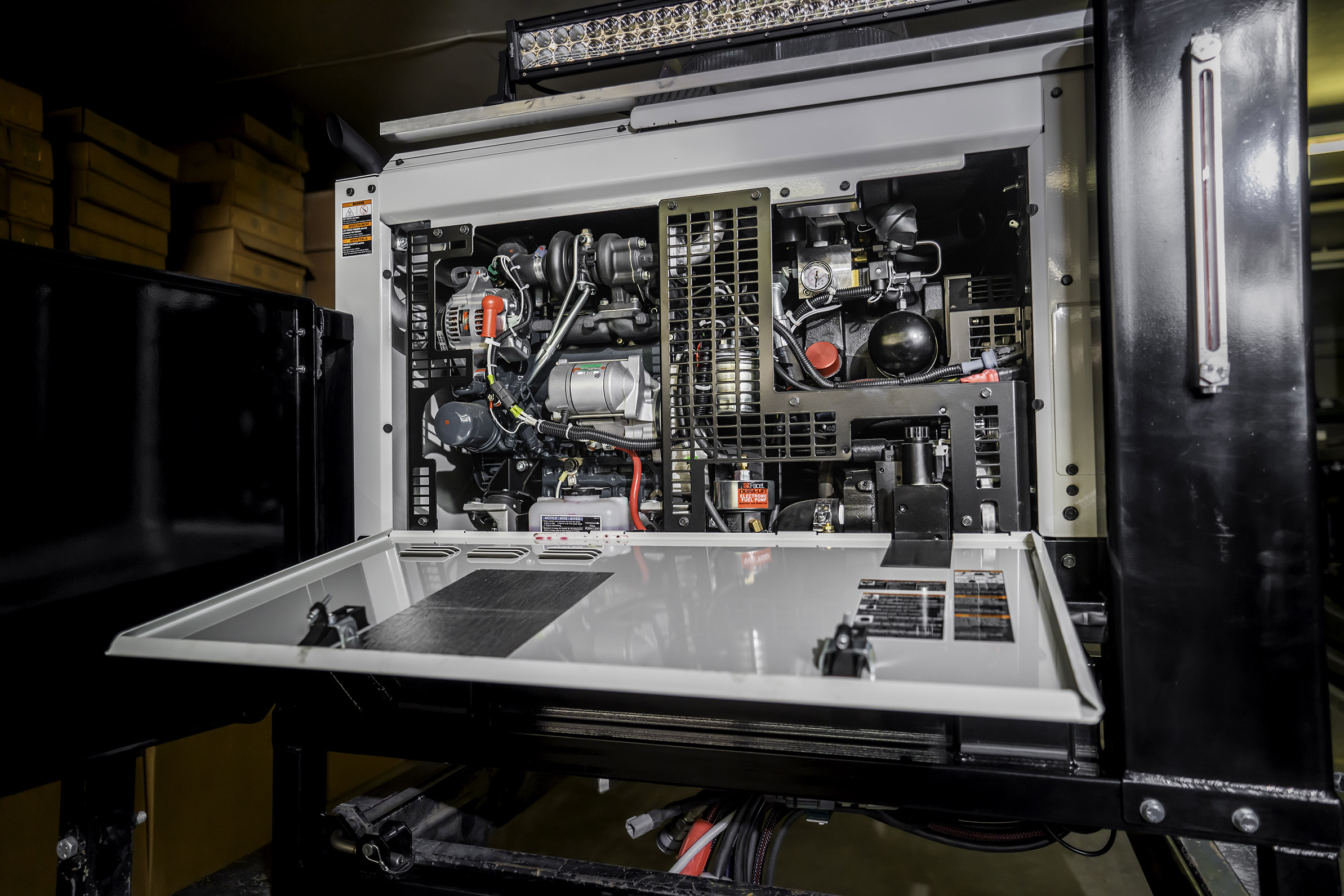

  • Aluminum diamond plate access panels, with push button latches

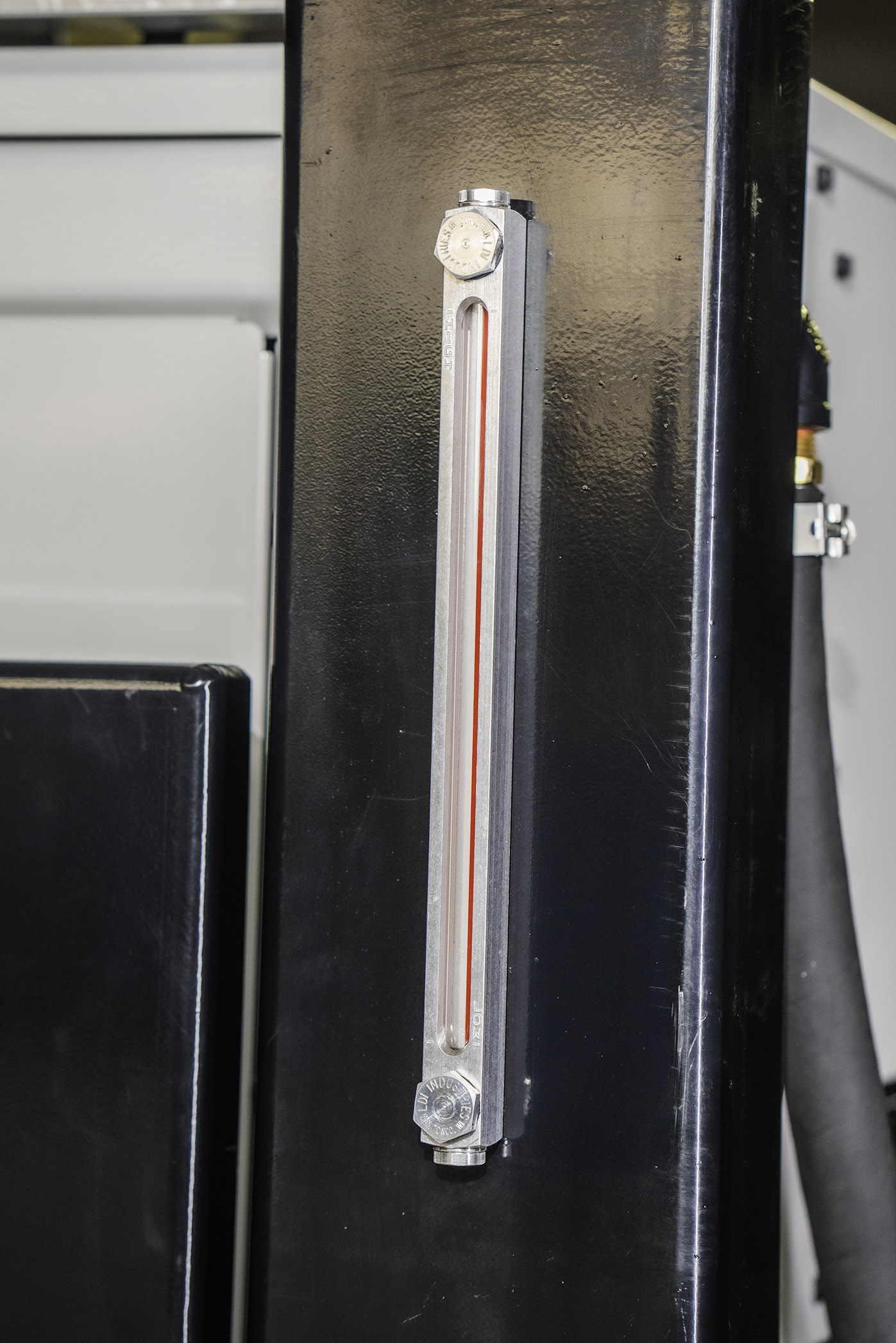

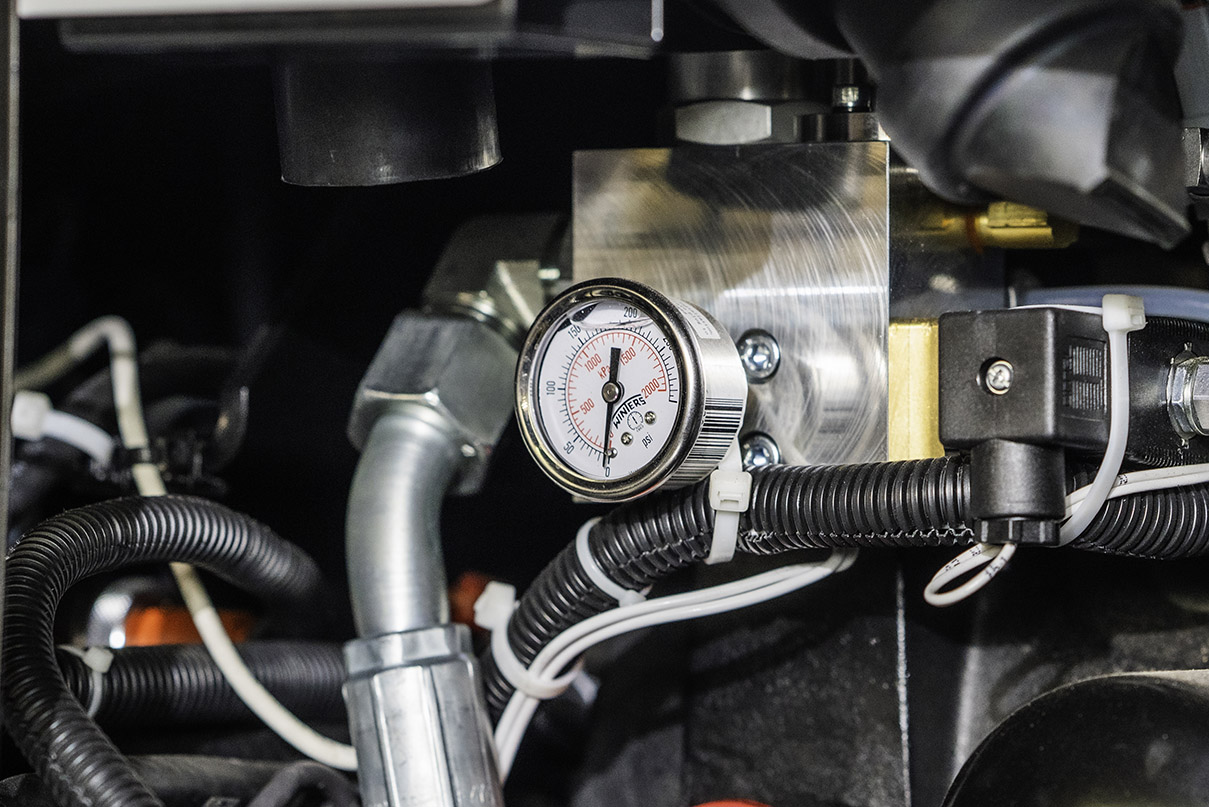

  • Hydraulic temperature / sight gauge and breather cap
  • Docking, lock pins, and isolation pads

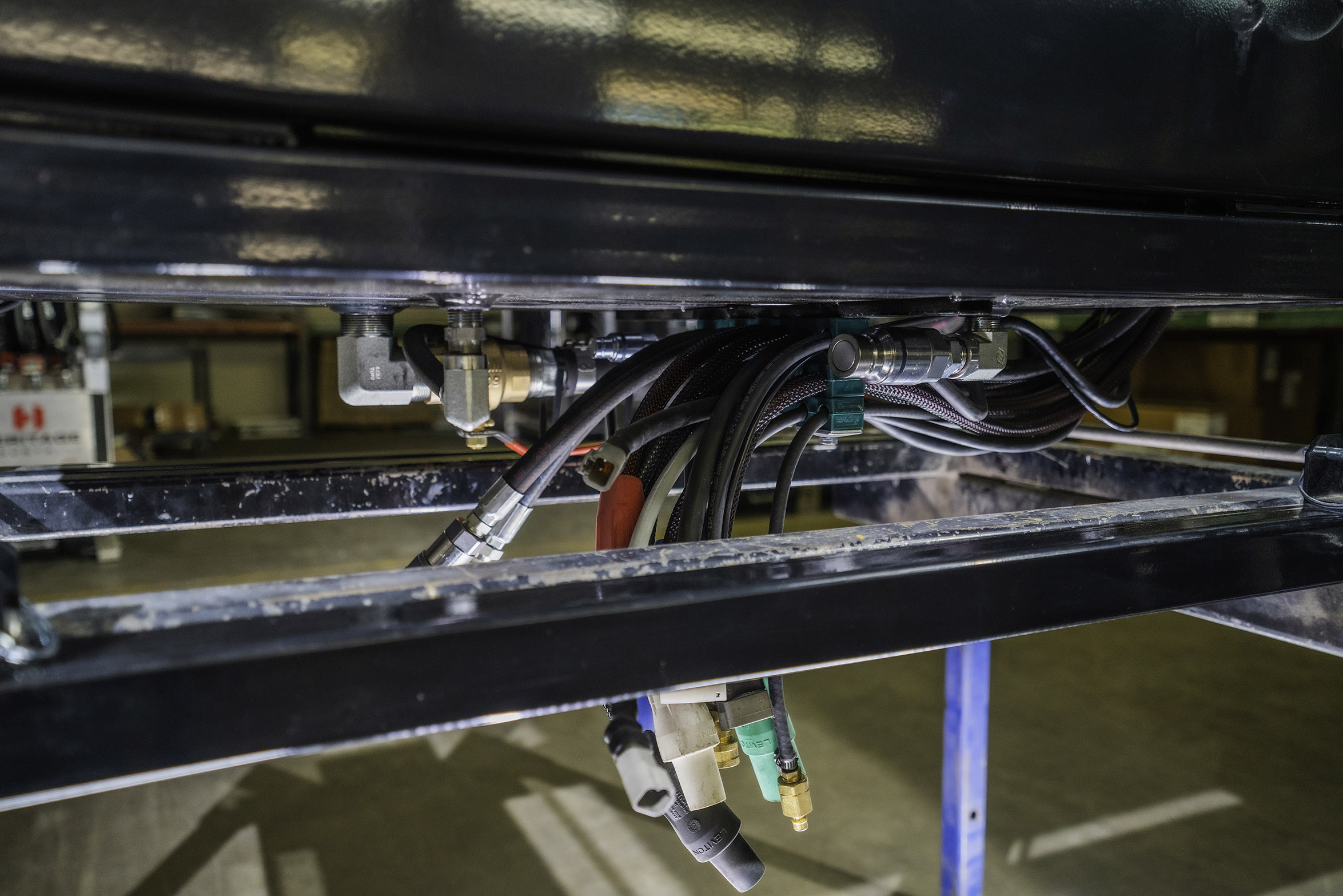

  • Pre-plumbed and mounted connections

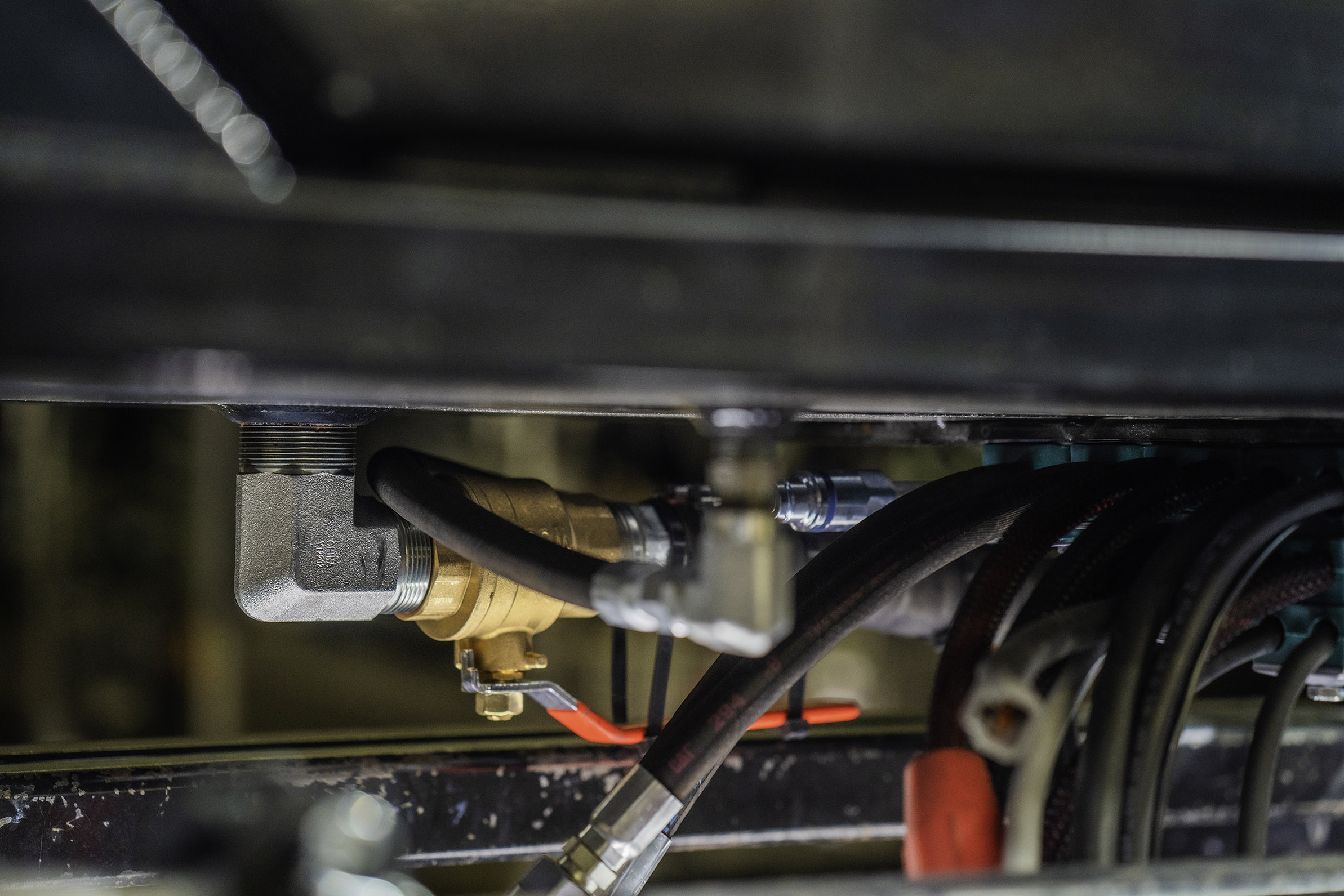

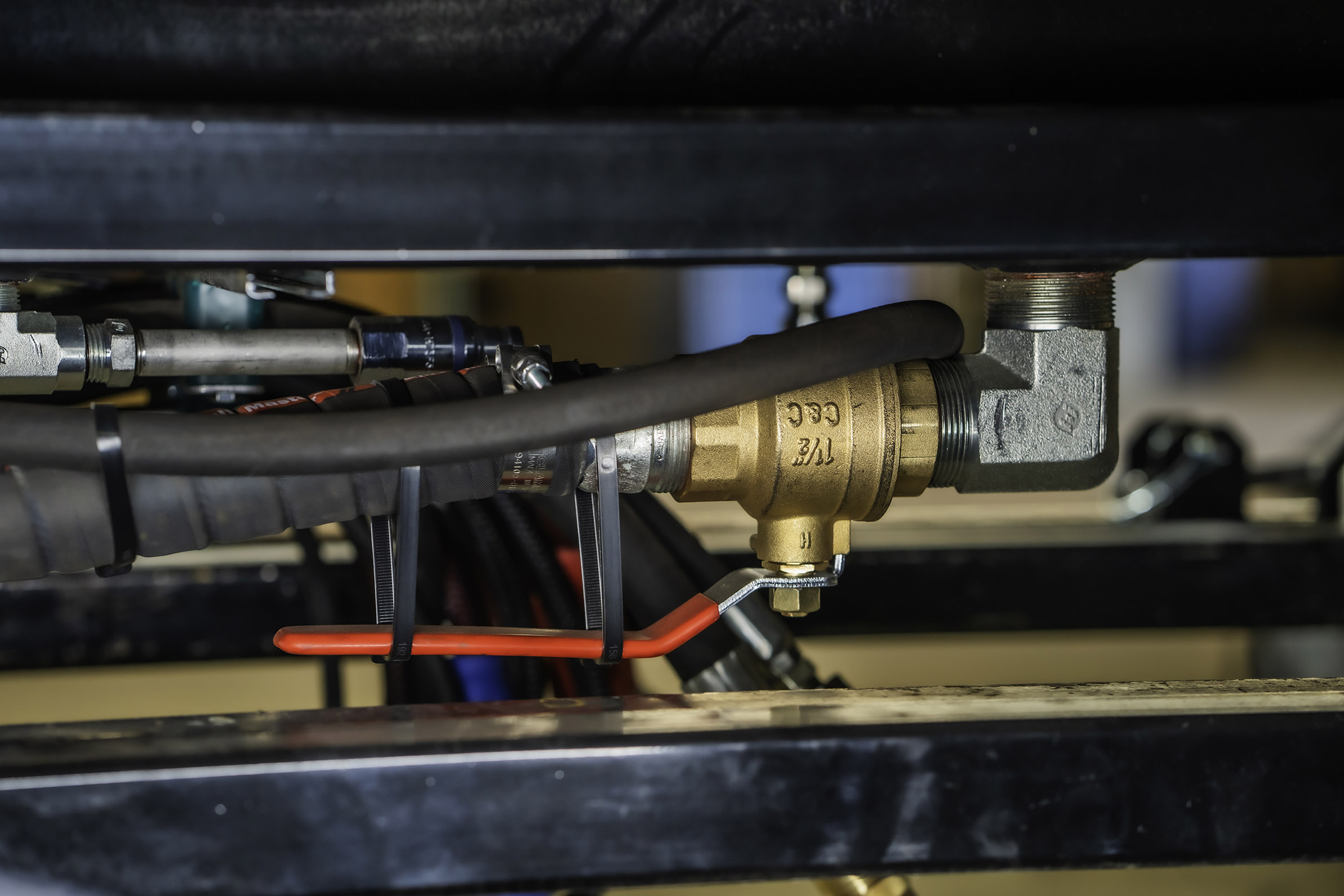

  • Hydraulic suction line with 1/4 turn ball valve

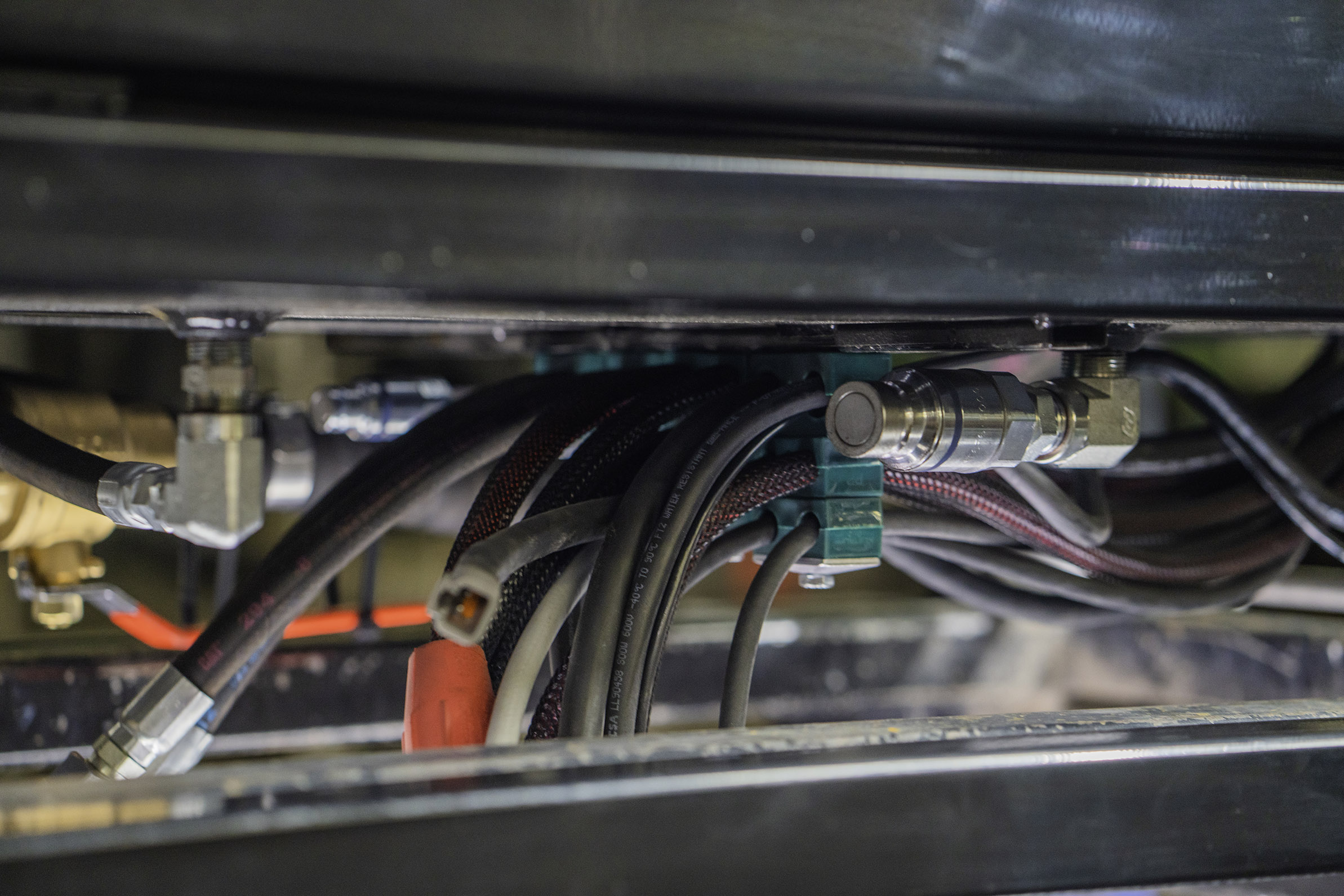

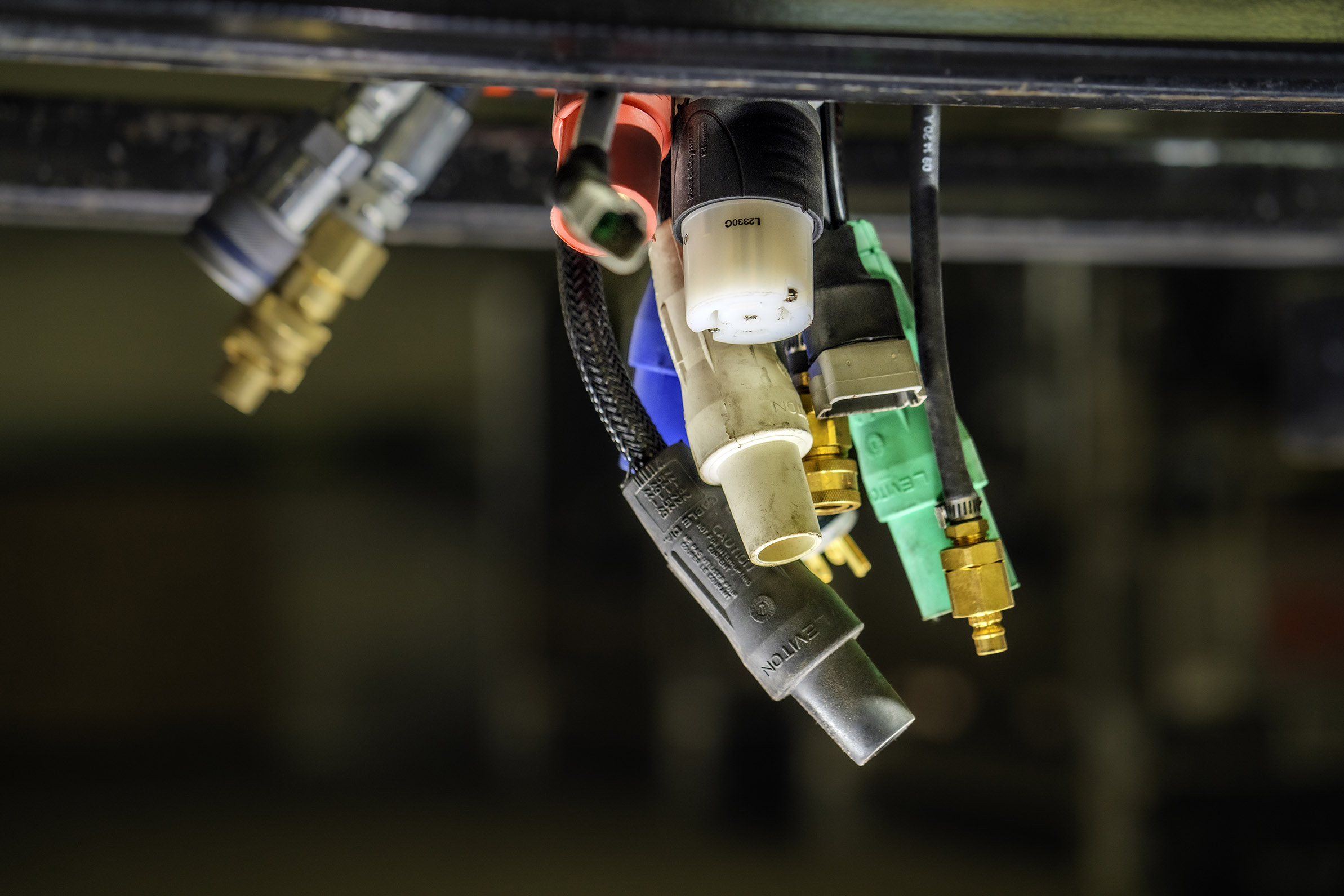

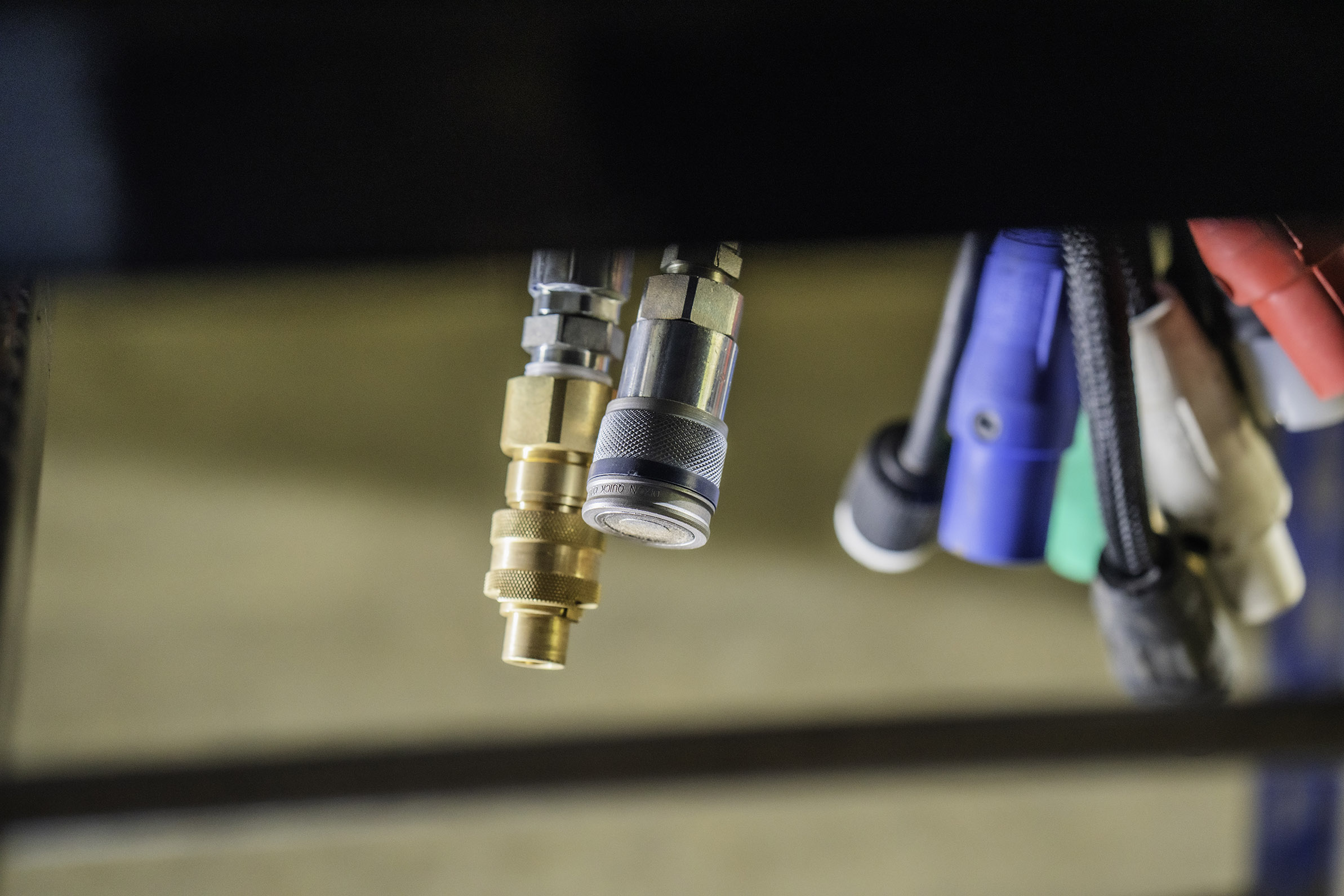

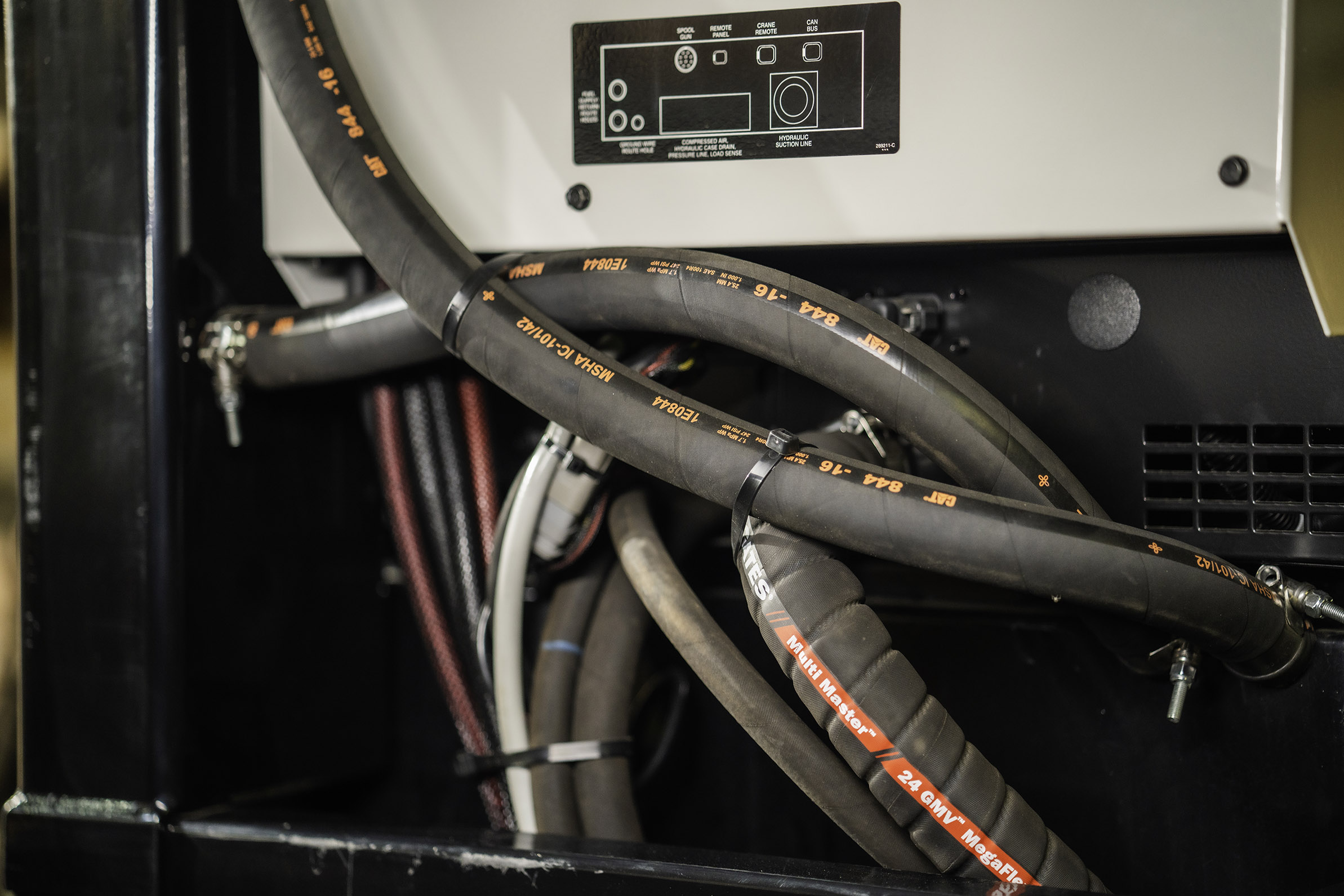

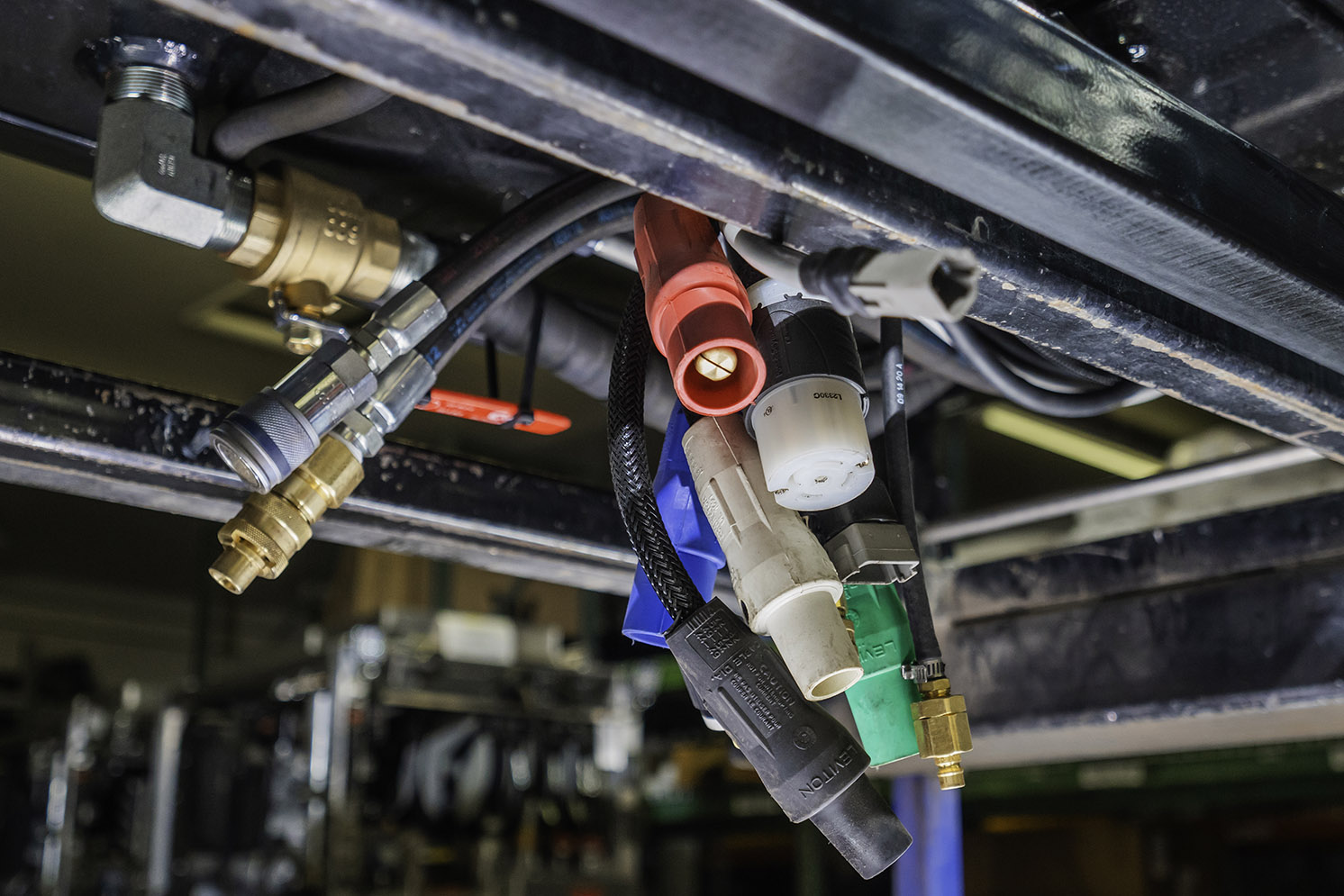

  • Main pressure and return supply lines with flat-face quick disconnect

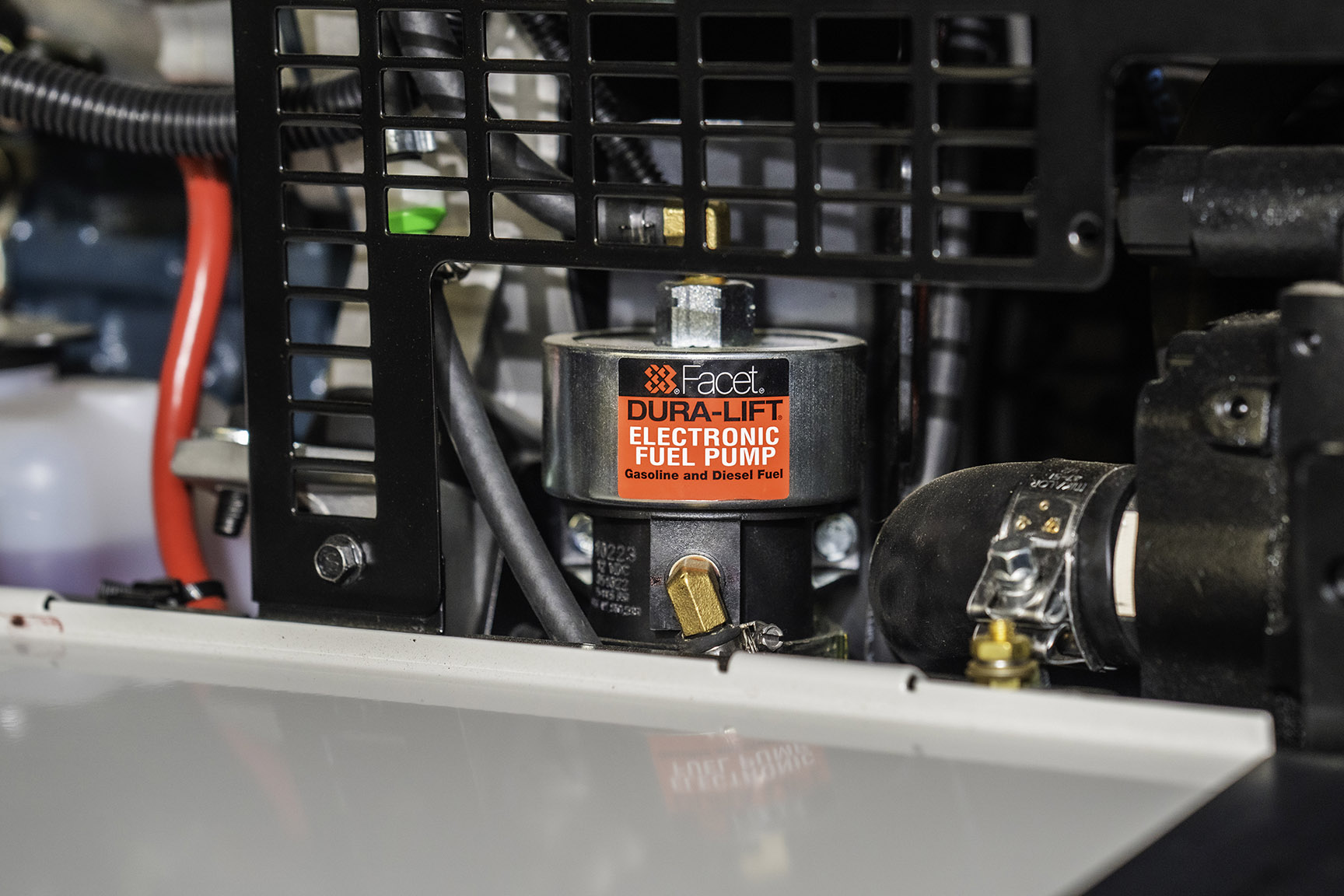

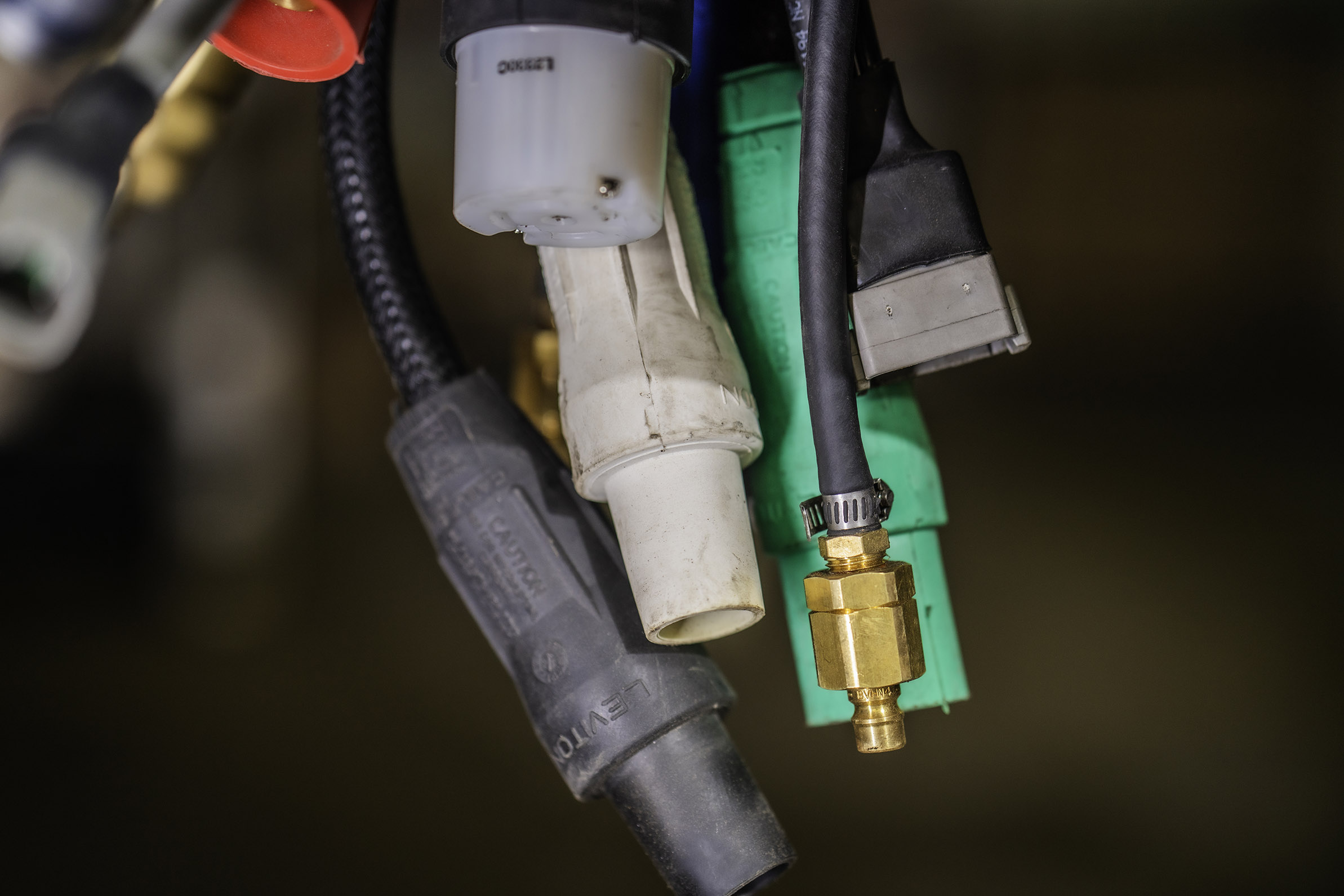

  • Fuel pickup and return lines with rated disconnects
  • 300 AMP rated 12v +/- disconnects with 1/0 cable
  • Grip-lock quick disconnect air coupling
  • Twist lock 120/240 VAC interface with 10 gauge conductors
  • 15 ft fuel lines with check valves and quick disconnects
  • 20 ft hydraulic pressure hose
  • 20 ft return hose
  • 10 micron filter housing with element valves
  • 20 ft 1/0 12 VDC power cable with 200 AMP fuse/holder
  • 10 ft 1/0 grounding cable
  • Optional: quick dock spare tire carrier, 120/240 VAC installtion kit

Save money and time with the EnPak Quick Dock by Heritage Industries. With the Quick Dock you can un-dock and dock a new EnPak power system in 1 hour or less.

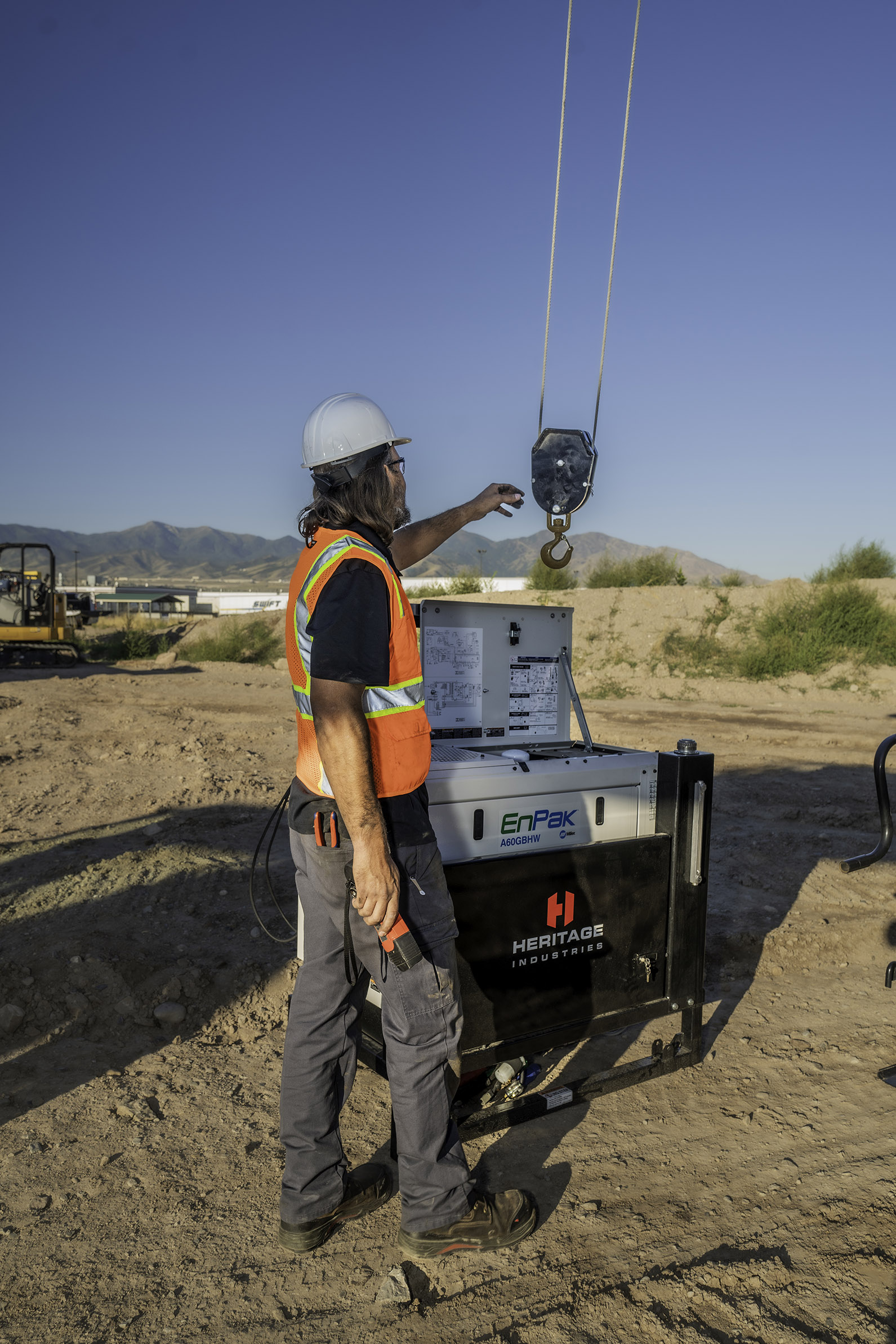

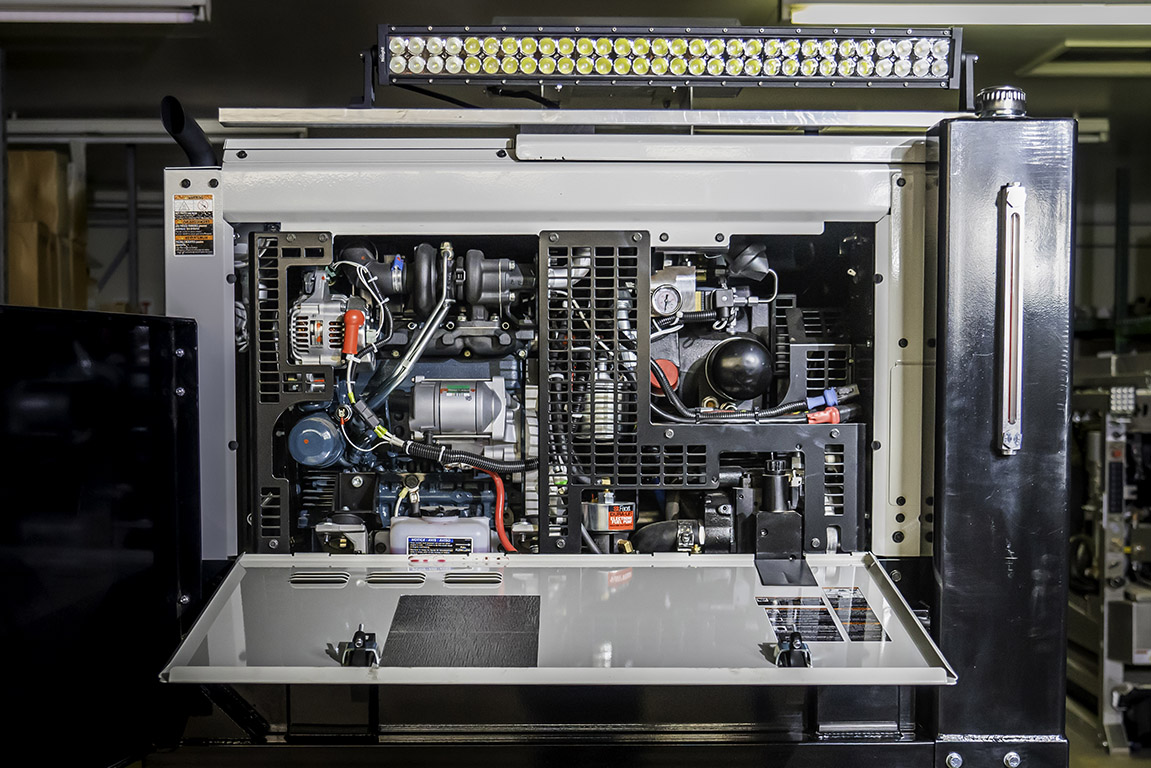

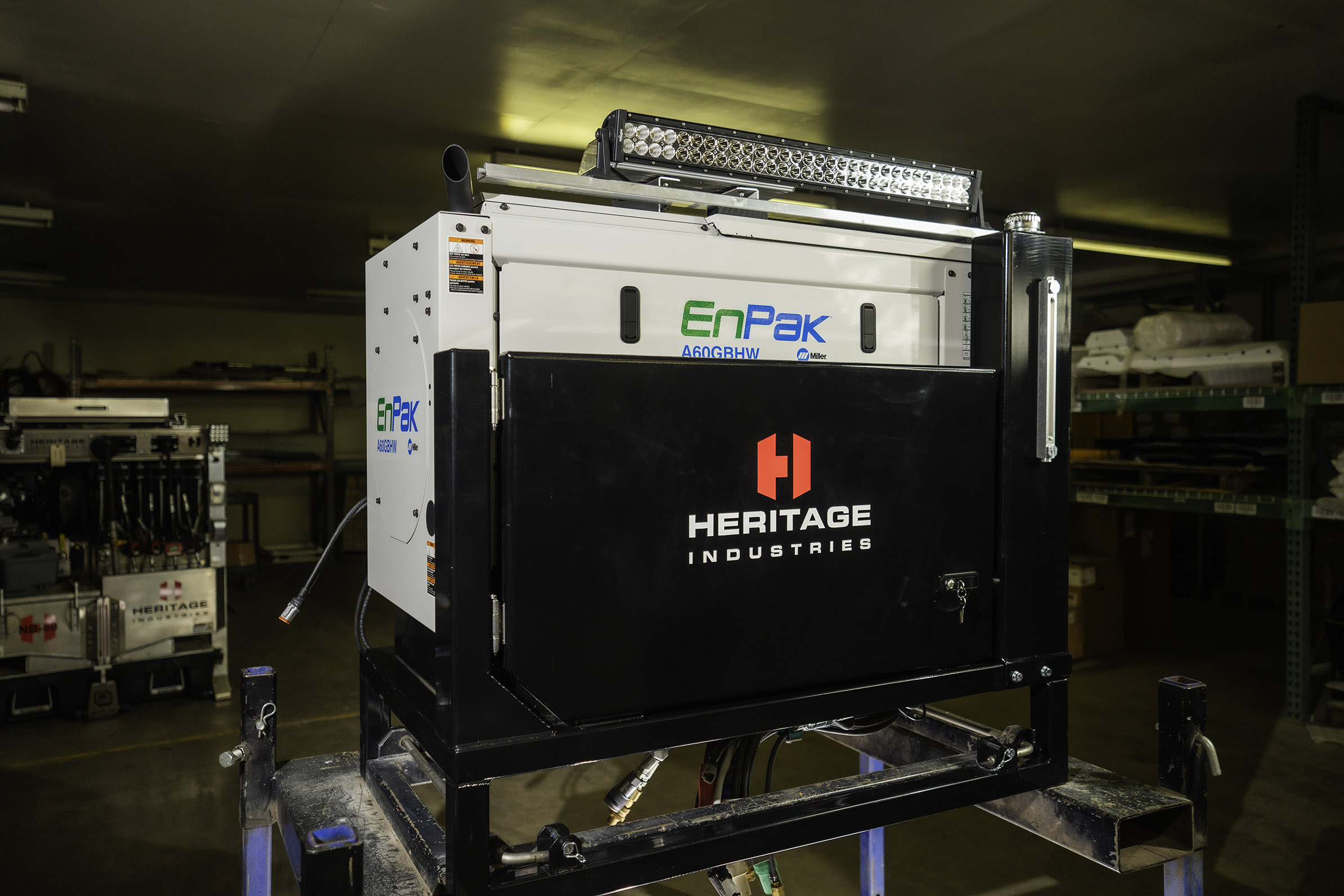

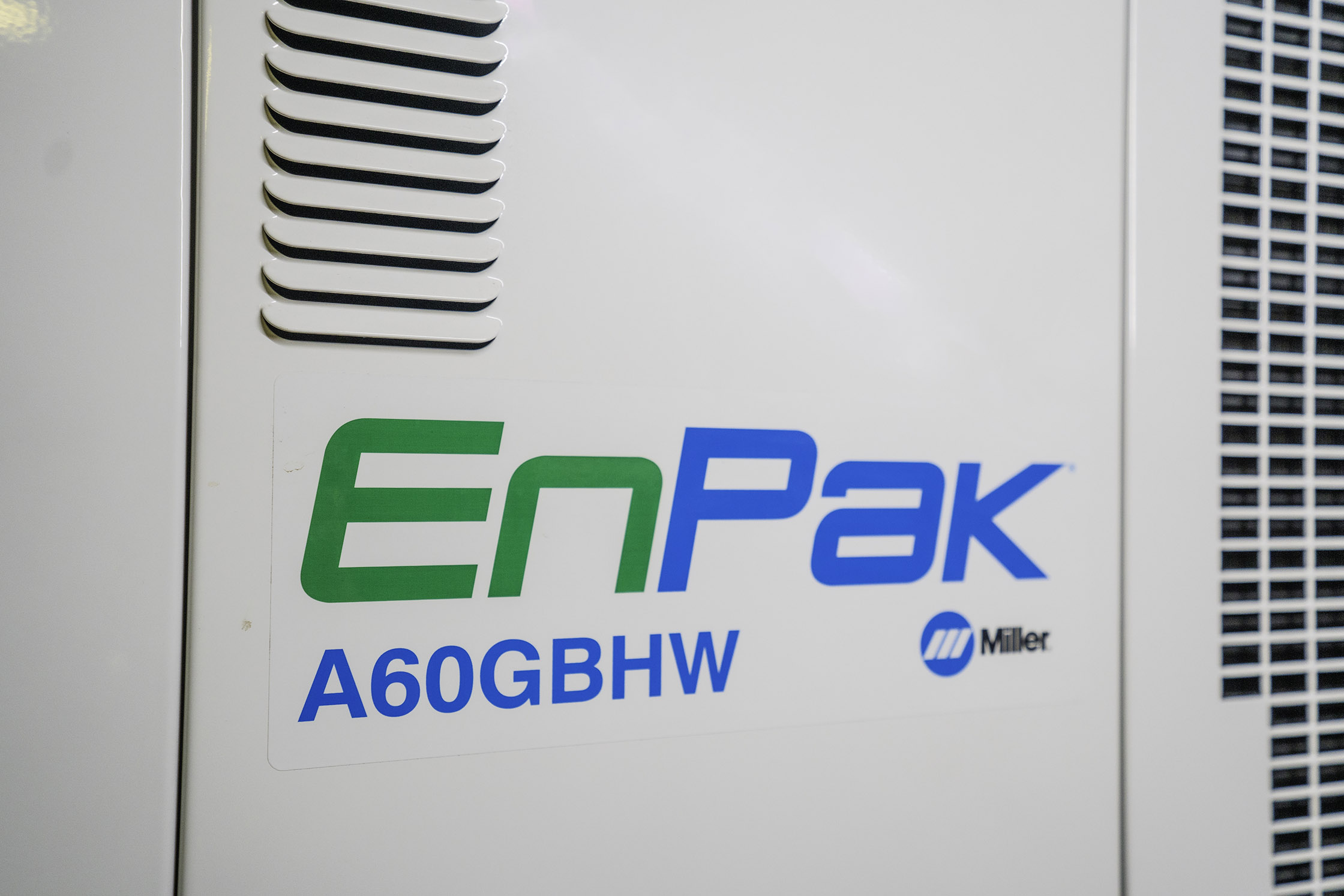

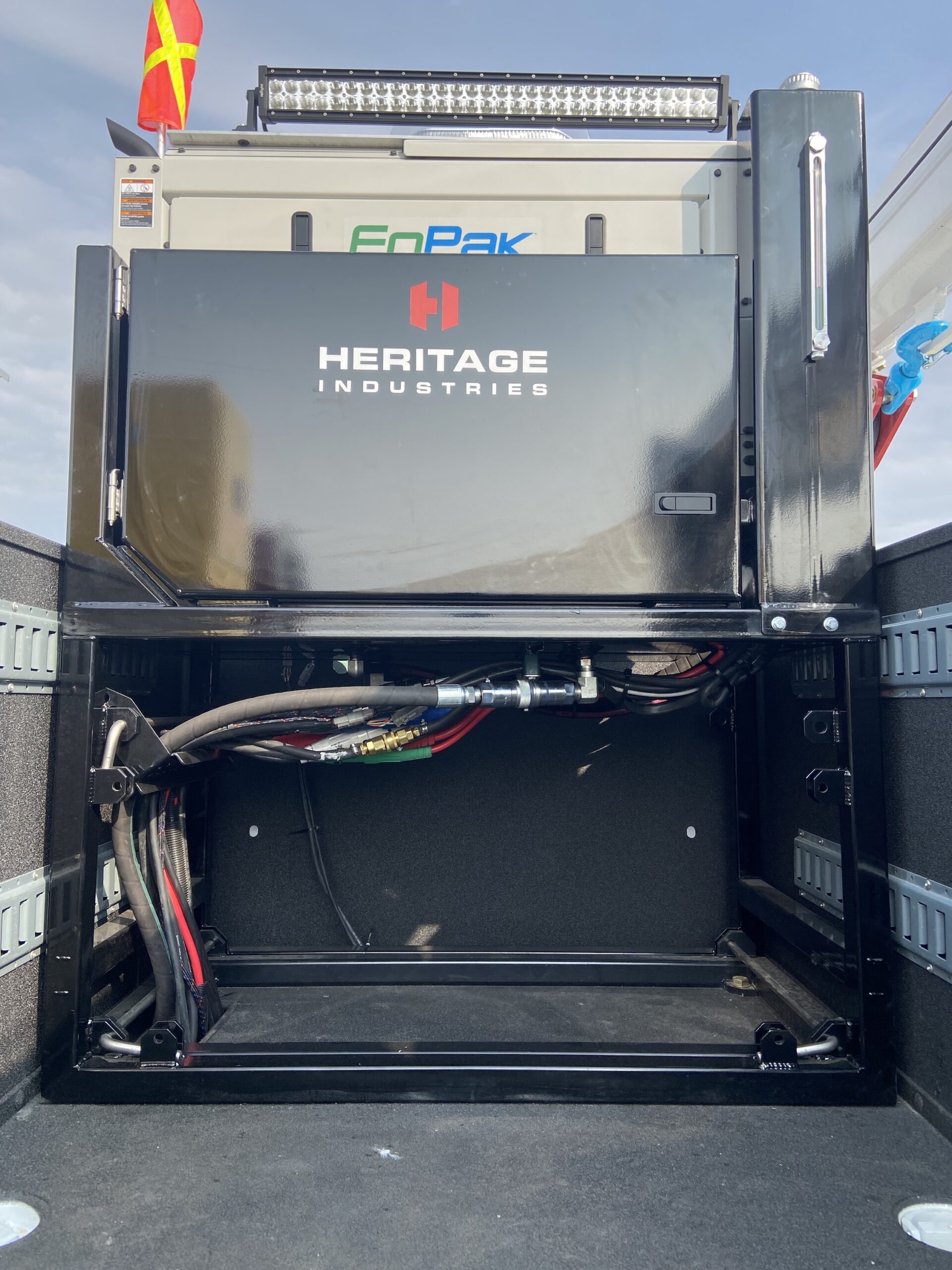

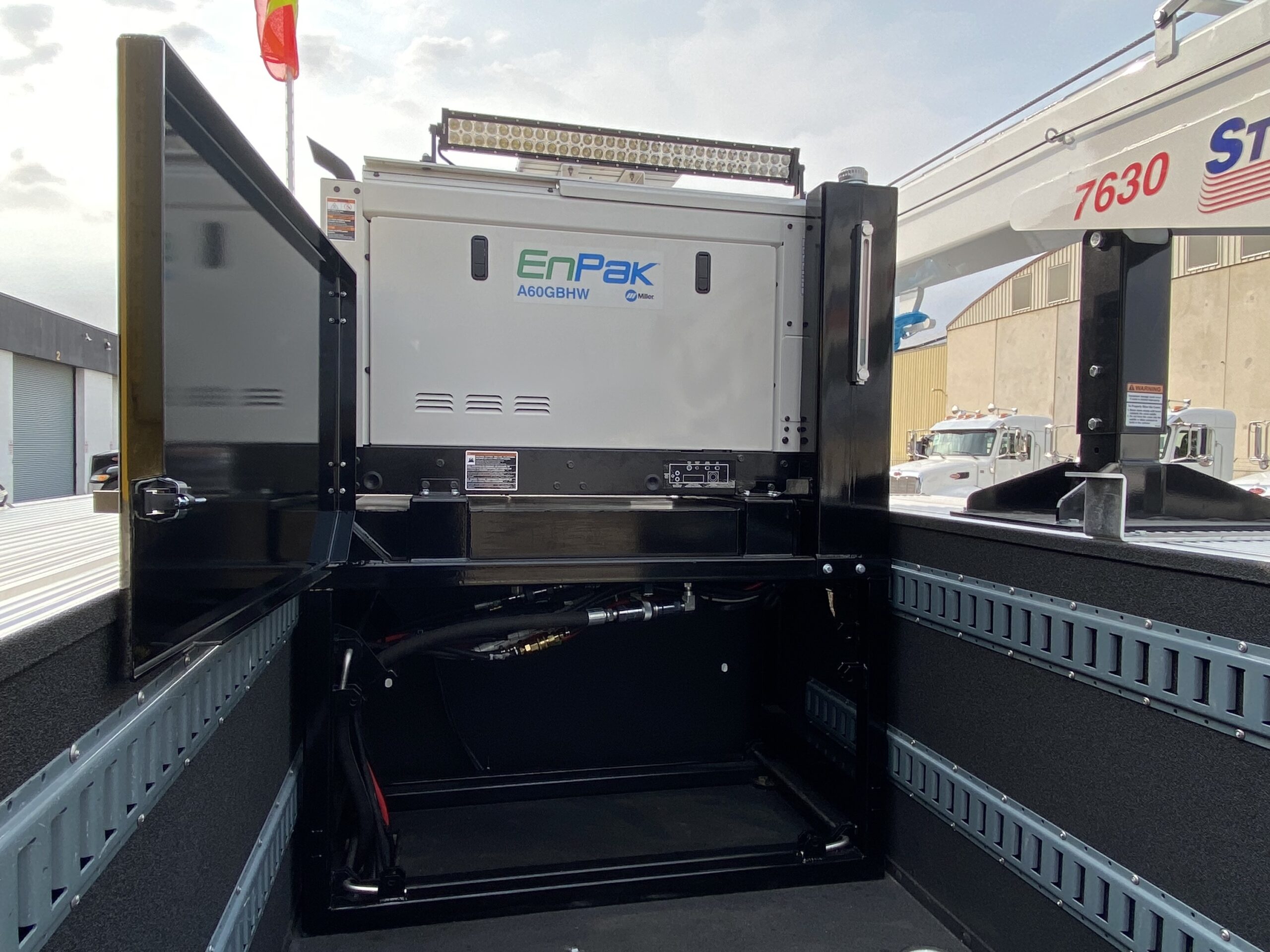

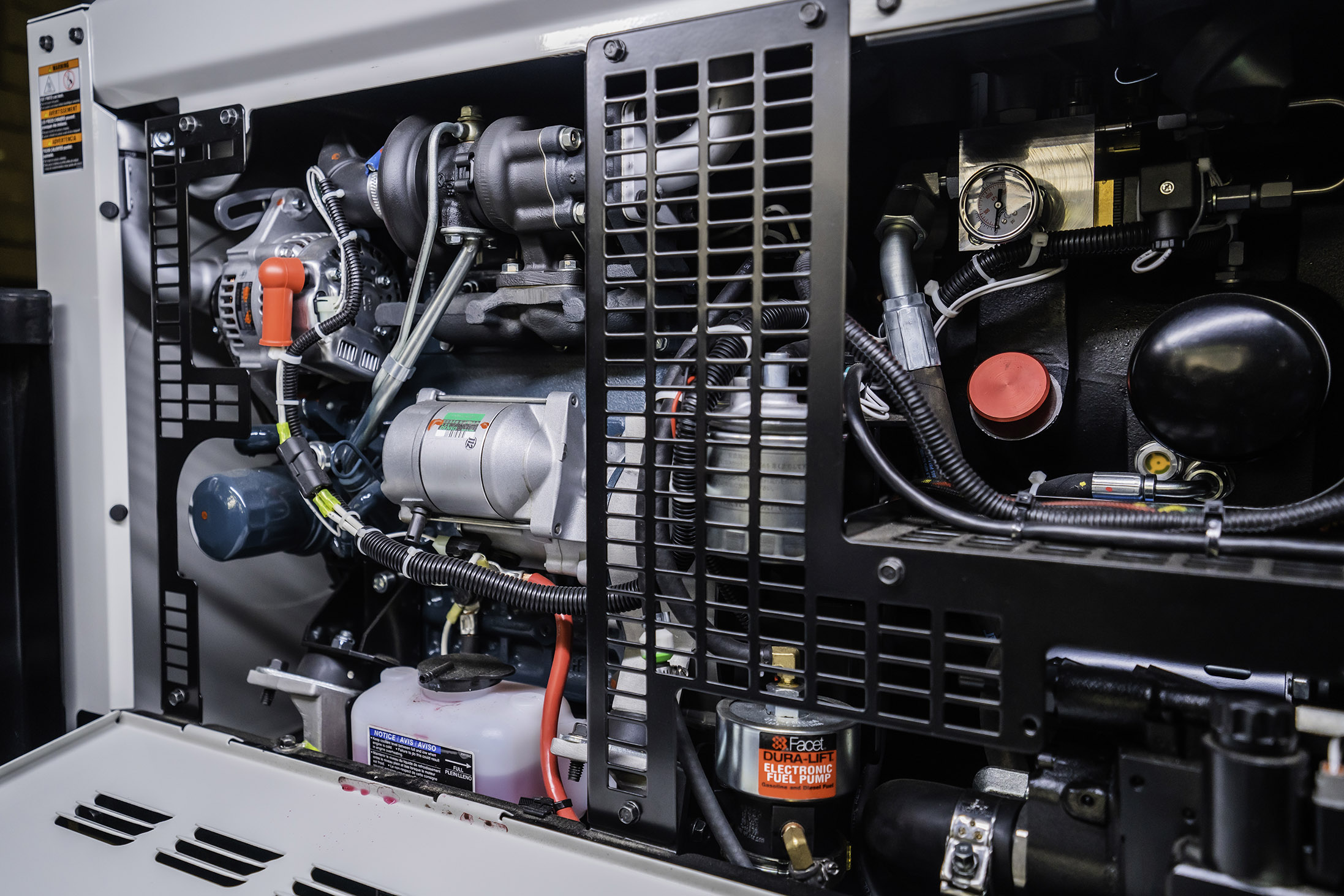

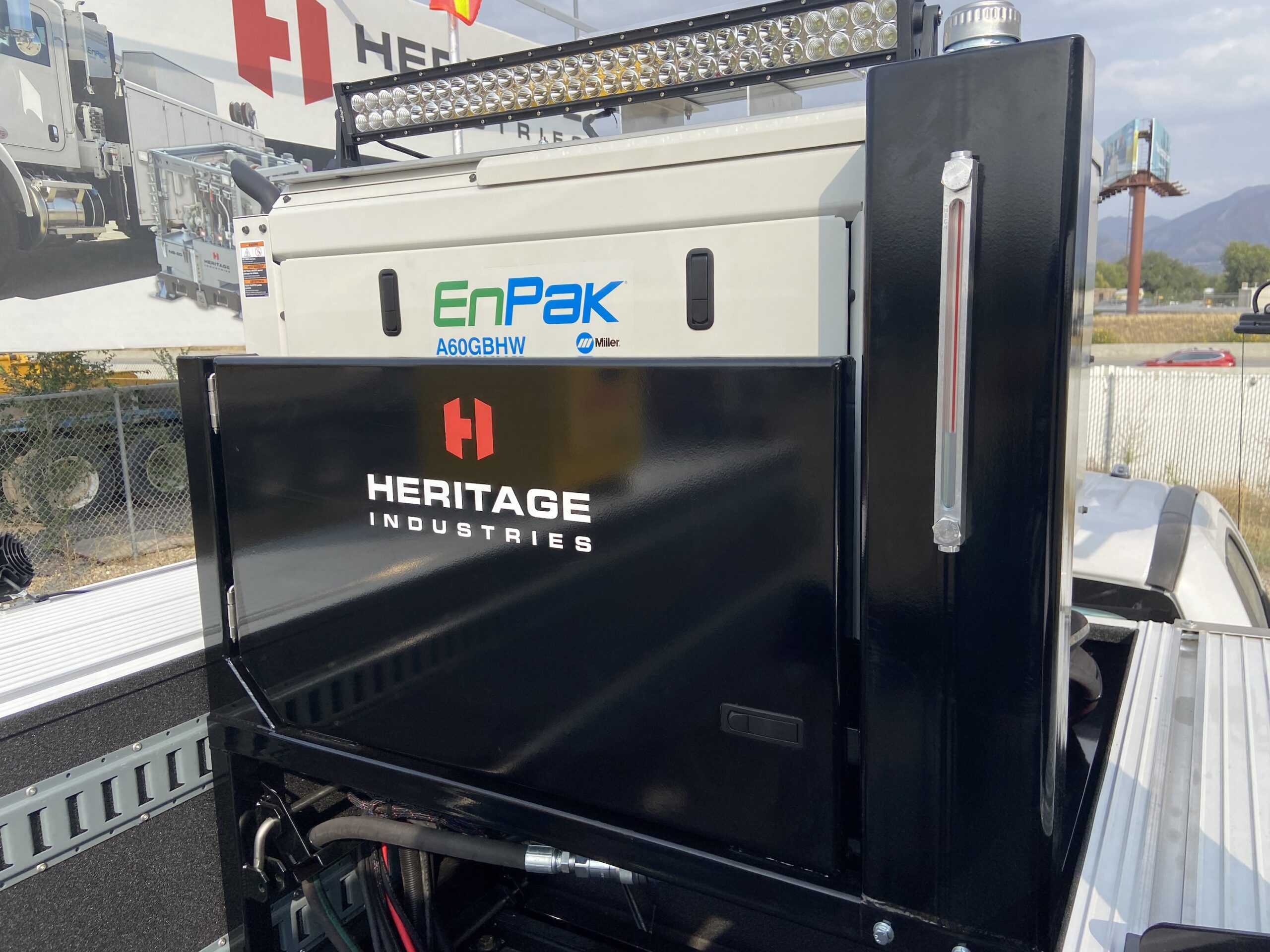

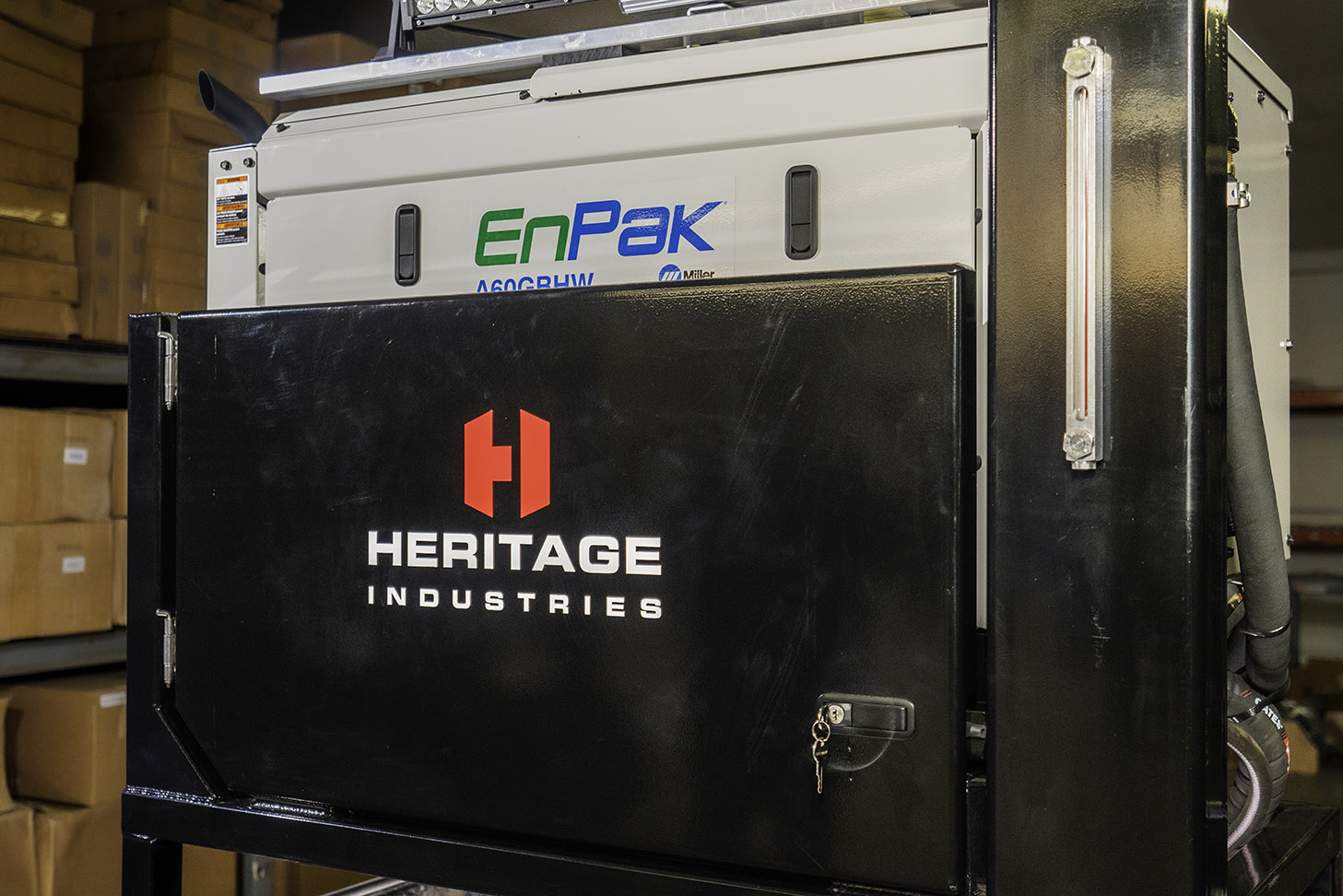

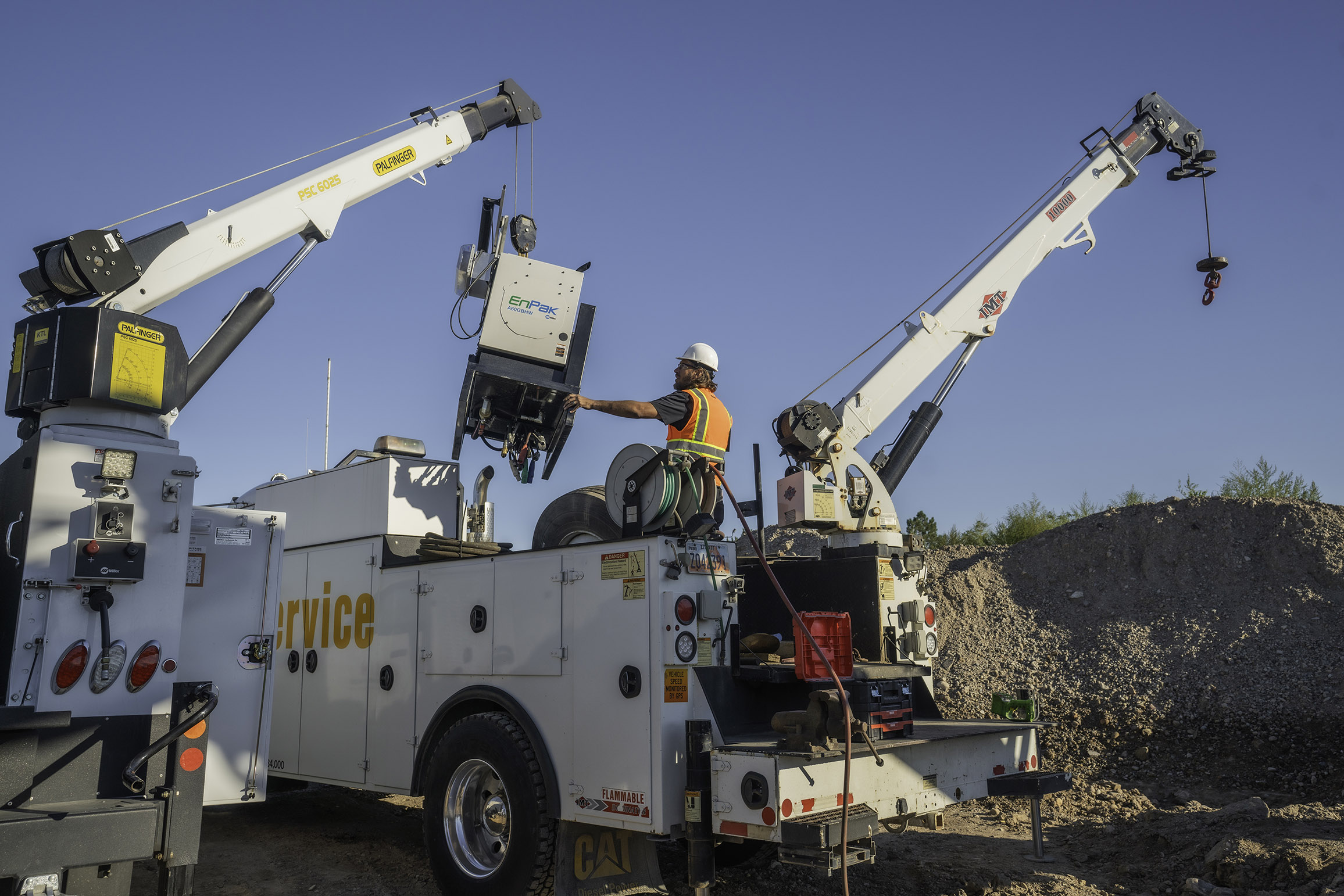

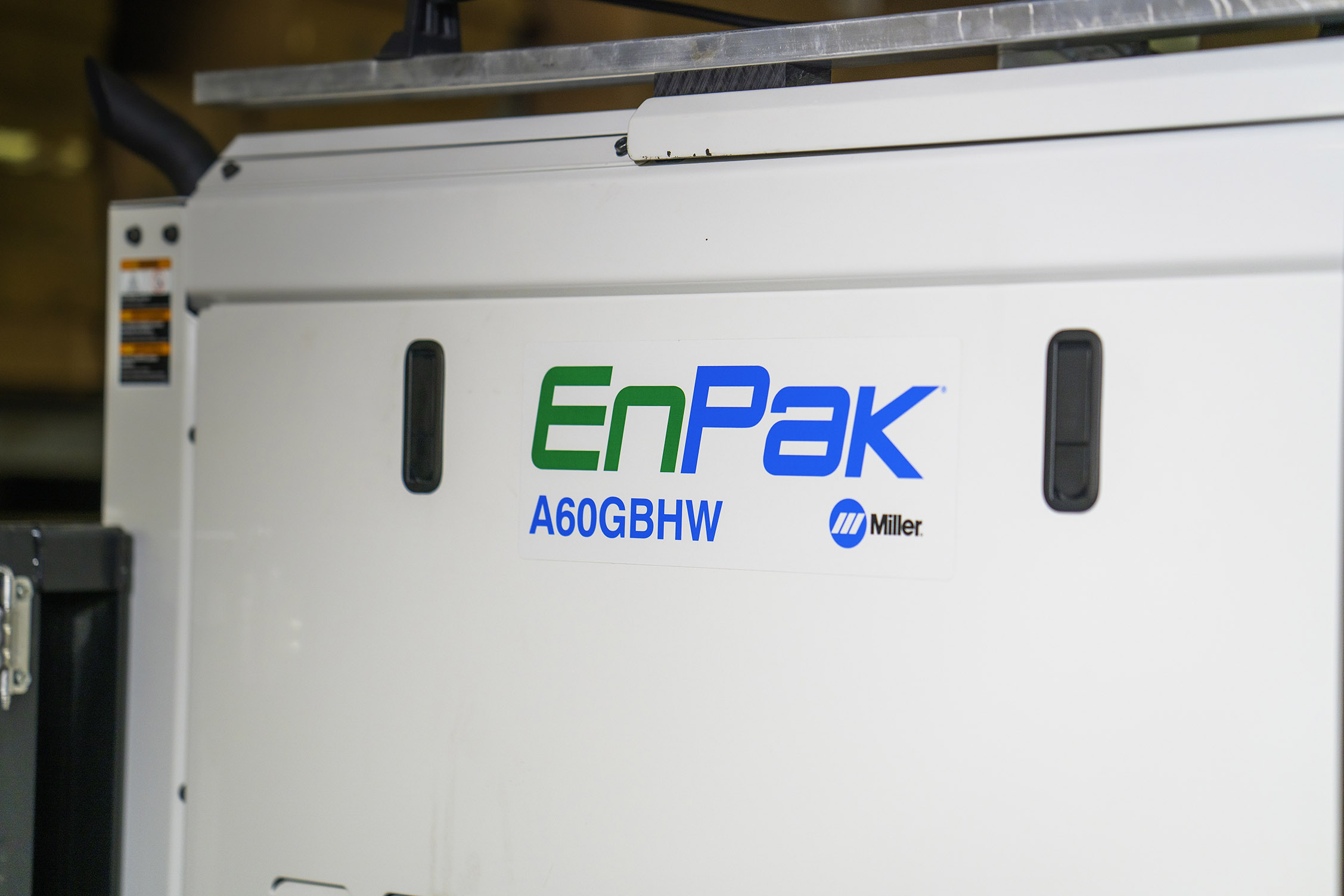

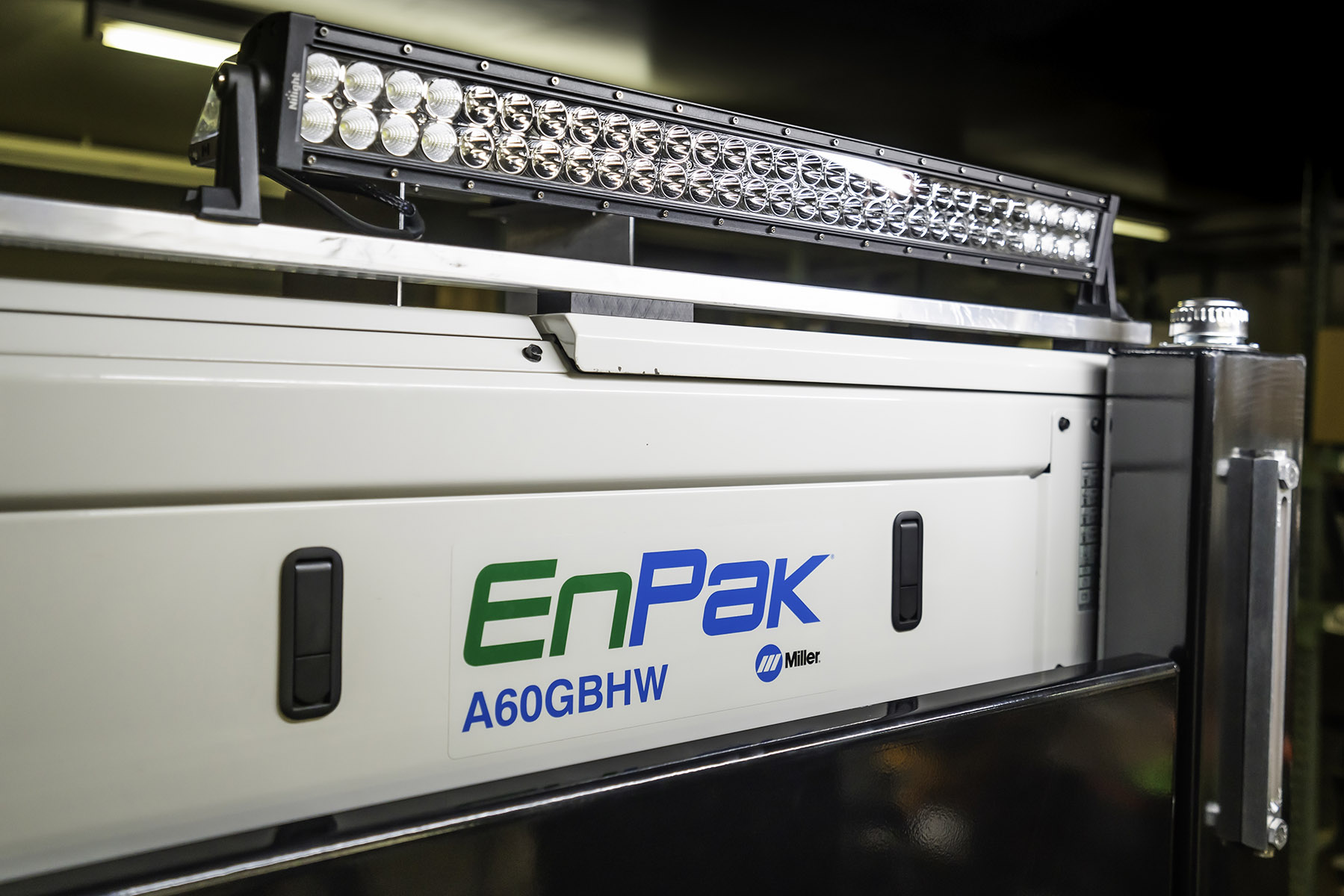

EnPak Quick Dock Gallery
